74LVC1G53-Q100 - 2-channel analog multiplexer/demultiplexer

Description

The 74LVC1G53-Q100 is a single-pole double-throw analog switch with a digital select input (S), two independent inputs/outputs (Y0 and Y1), a common input/output (Z) and a digital enable input (E).

When E is HIGH, the switch is turned off.

Features

  • Automotive product qualification in accordance with AEC-Q100 (Grade 1).
  • Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
  • Wide supply voltage range from 1.65 V to 5.5 V.
  • Very low ON resistance:.
  • 7.5 Ω (typical) at VCC = 2.7 V.
  • 6.5 Ω (typical) at VCC = 3.3 V.
  • 6 Ω (typical) at VCC = 5 V.
  • Switch current capability of 32 mA.
  • High noise immunity.
  • CMOS low power consumption.
  • TTL interface comp.

📥 Download Datasheet

Datasheet Details

Part number 74LVC1G53-Q100
Manufacturer Nexperia
File Size 286.13 KB
Description 2-channel analog multiplexer/demultiplexer
Datasheet download datasheet 74LVC1G53-Q100 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
74LVC1G53 2-channel analog multiplexer/demultiplexer NXP
74LVC1G57 Low-power configurable multiple function gate NXP
74LVC1G57 CONFIGURABLE MULTIPLE-FUNCTION GATE Diodes
74LVC1G58 Low-power configurable multiple function gate NXP
74LVC1G58 CONFIGURABLE MULTIPLE-FUNCTION GATE Diodes

Other Datasheets by Nexperia

Part Number Description
74LVC1G53 2-channel analog multiplexer/demultiplexer
74LVC1G57 Low-power configurable multiple function gate
74LVC1G57-Q100 Low-power configurable multiple function gate
74LVC1G58 Low-power configurable multiple function gate
74LVC1G58-Q100 Low-power configurable multiple function gate

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

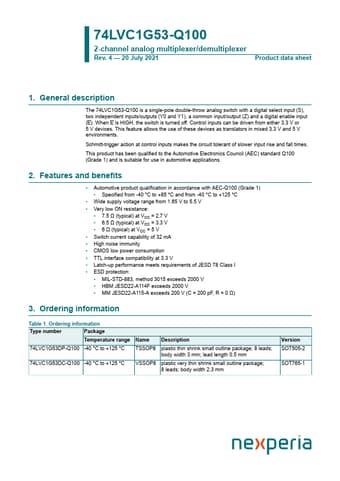

74LVC1G53-Q100 2-channel analog multiplexer/demultiplexer Rev. 4 — 20 July 2021 Product data sheet 1. General description The 74LVC1G53-Q100 is a single-pole double-throw analog switch with a digital select input (S), two independent inputs/outputs (Y0 and Y1), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switch is turned off. Control inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at control inputs makes the circuit tolerant of slower input rise and fall times. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications. 2.
