74LVC157AD, 74LVC157A - Quad 2-input multiplexer

nexperia

📥 Download Datasheet

74LVC157AD Datasheet Preview — This datasheet PDF includes multiple part numbers: 74LVC157AD, 74LVC157A. Please refer to the document for exact specifications by model.

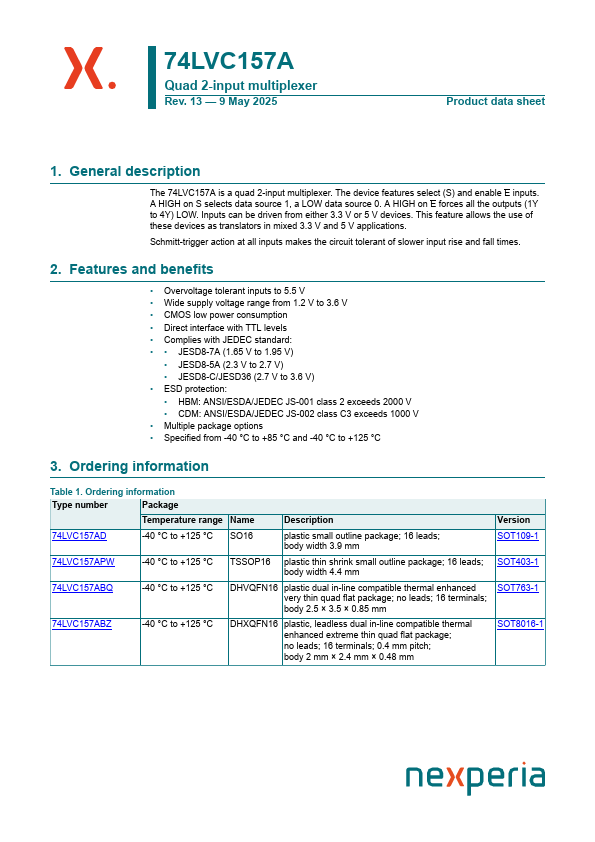

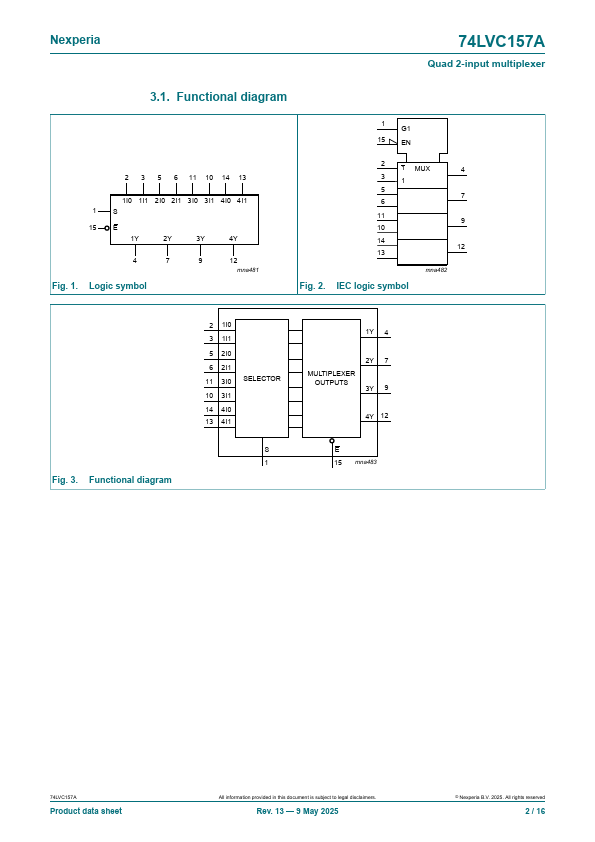

datasheet Preview Page 2

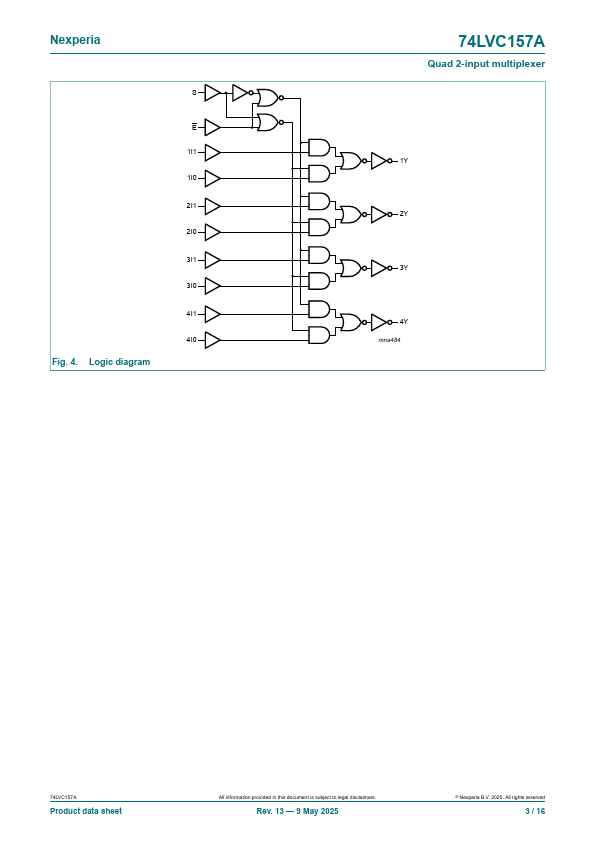

datasheet Preview Page 3

Datasheet Details

Part number	74LVC157AD, 74LVC157A
Manufacturer	nexperia
File Size	275.23 KB
Description	Quad 2-input multiplexer
Datasheet	74LVC157A-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74LVC157AD, 74LVC157A. Please refer to the document for exact specifications by model.

74LVC157AD Product details

Description

The 74LVC157A is a quad 2-input multiplexer.

Features

Overvoltage tolerant inputs to 5.5 V.
Wide supply voltage range from 1.2 V to 3.6 V.
CMOS low power consumption.
Direct interface with TTL levels.
Complies with JEDEC standard:.
JESD8-7A (1.65 V to 1.95 V).
JESD8-5A (2.3 V to 2.7 V).
JESD8-C/JESD36 (2.7 V to 3.6 V).
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V.
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V.
