74HCT32, 74HC32 - Quad 2-input OR gate

nexperia

The 74HCT32 by nexperia is a Quad 2-input OR gate. Below is the official datasheet preview.

📥 Download Datasheet

74HCT32 Quad 2-input OR gate by nexperia - Datasheet Preview — Official preview page of the 74HCT32 Quad 2-input OR gate datasheet (nexperia).

Datasheet Details

Part number	74HCT32, 74HC32
Manufacturer	nexperia
File Size	263.21 KB
Description	Quad 2-input OR gate
Datasheet	74HC32-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74HCT32, 74HC32. Please refer to the document for exact specifications by model.

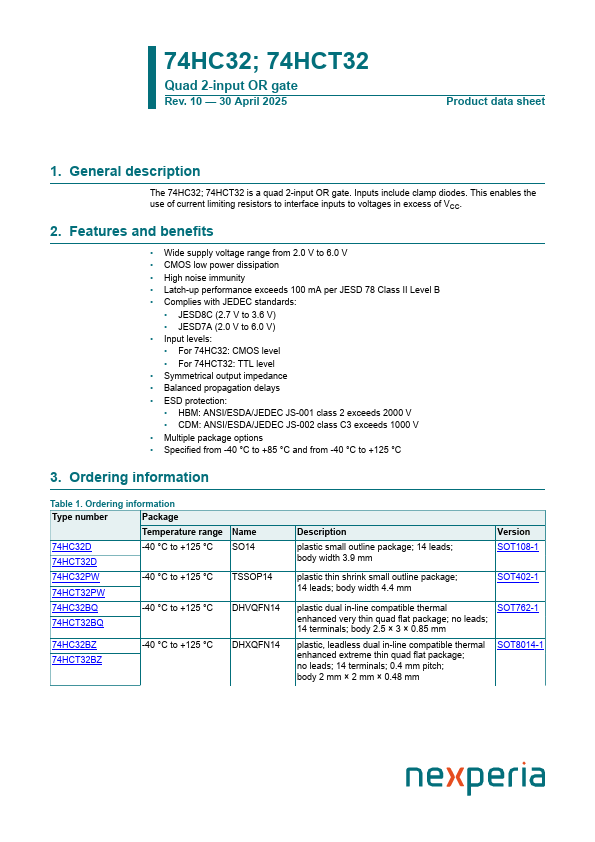

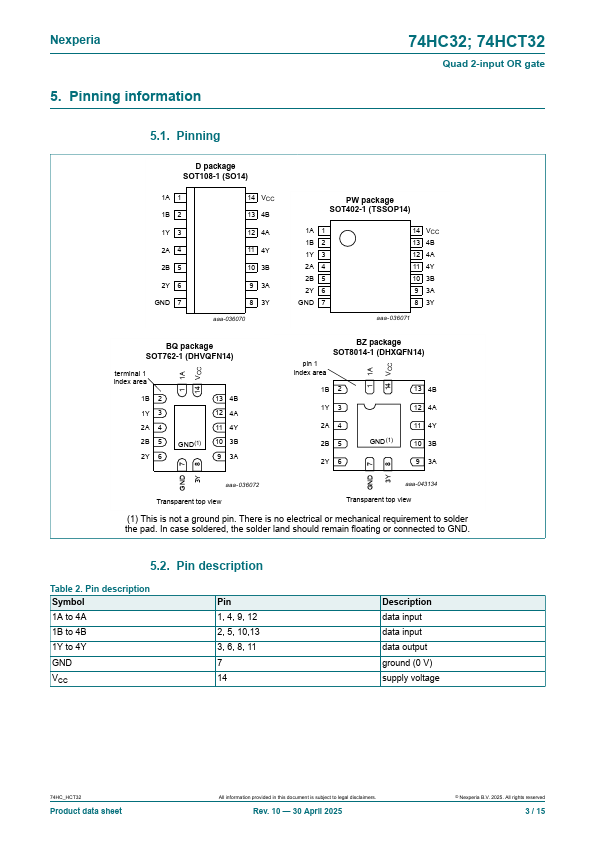

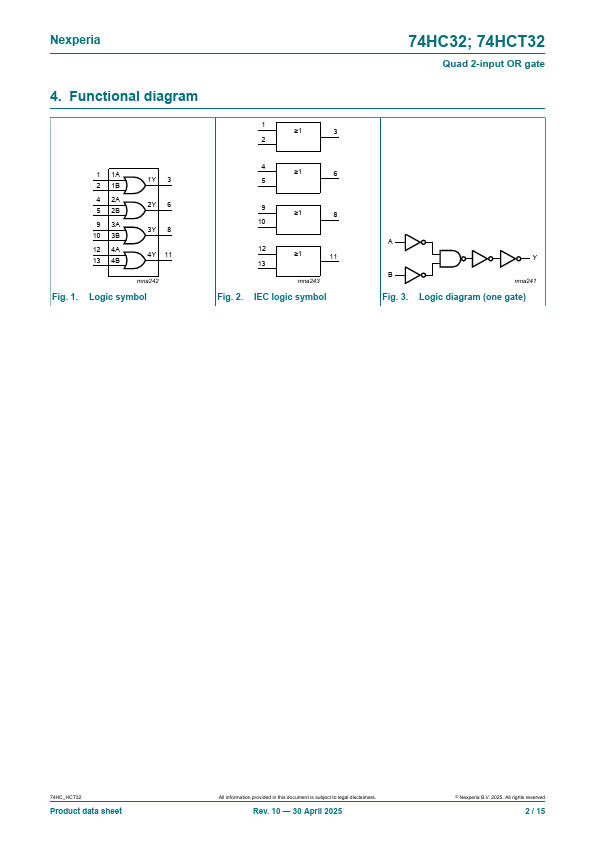

Additional preview pages of the 74HCT32 datasheet.

74HCT32 Product details

Description

The 74HC32; 74HCT32 is a quad 2-input OR gate.

Features

Wide supply voltage range from 2.0 V to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Complies with JEDEC standards:.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
Input levels:.
For 74HC32: CMOS level.
For 74HCT32: TTL level.
Symmetrical output impedance.
Balanced propagation delays.
ESD protection:.
