74HCT30PW, 74HC30 - 8-input NAND gate

nexperia

The 74HCT30PW by nexperia is a 8-input NAND gate. Below is the official datasheet preview.

📥 Download Datasheet

74HCT30PW 8-input NAND gate by nexperia - Datasheet Preview — Official preview page of the 74HCT30PW 8-input NAND gate datasheet (nexperia).

Datasheet Details

Part number	74HCT30PW, 74HC30
Manufacturer	nexperia
File Size	231.18 KB
Description	8-input NAND gate
Datasheet	74HC30-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74HCT30PW, 74HC30. Please refer to the document for exact specifications by model.

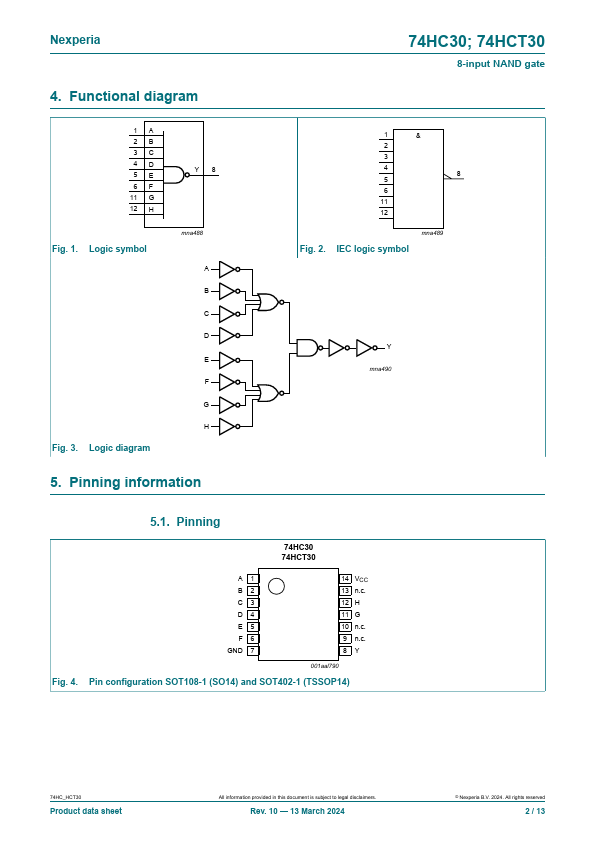

Additional preview pages of the 74HCT30PW datasheet.

74HCT30PW Product details

Description

The 74HC30; 74HCT30 is an 8-input NAND gate.

Features

Wide supply voltage range from 2.0 V to 6.0 V.
CMOS low power dissipation.
High noise immunity.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Complies with JEDEC standards:.
JESD8C (2.7 V to 3.6 V).
JESD7A (2.0 V to 6.0 V).
Input levels:.
For 74HC30: CMOS level.
For 74HCT30: TTL level.
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V.
CDM: A.
