LN2053 - 1A Is Compatible With The USB Interface / Linear Battery Management Chip

The LN2053 by natlinear is a 1A Is Compatible With The USB Interface / Linear Battery Management Chip. Below is the official datasheet preview.

📥 Download Datasheet

LN2053 1A Is Compatible With The USB Interface / Linear Battery Management Chip by natlinear - Datasheet Preview — Official preview page of the **LN2053** 1A Is Compatible With The USB Interface / Linear Battery Management Chip datasheet (natlinear).

Datasheet Details

Part number	LN2053
Manufacturer	natLinear
File Size	246.69 KB
Description	1A Is Compatible With The USB Interface / Linear Battery Management Chip
Datasheet	LN2053-natlinear.pdf

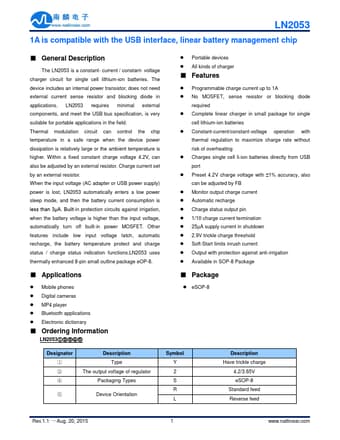

Additional preview pages of the LN2053 datasheet.

LN2053 Product details

Description

The LN2053 is a constant- current / constant- voltage charger circuit for single cell lithium-ion batteries.

Features

grammable charge current up to 1A.
No MOSFET, sense resistor or blocking diode required.
Complete linear charger in small package for single cell lithium-ion batteries.
Constant-current/constant-voltage operation with thermal regulation to maximize charge rate without risk of overheating.
Charges single cell li-ion batteries directly from USB port.
Preset 4.2V charge voltage with 1% accuracy, also can be adjusted by FB.
Monitor output charge current.
Automati.
