LN2052 - 1A Is Compatible With The USB Interface / Linear Battery Management Chip

The LN2052 by natlinear is a 1A Is Compatible With The USB Interface / Linear Battery Management Chip. Below is the official datasheet preview.

📥 Download Datasheet

LN2052 1A Is Compatible With The USB Interface / Linear Battery Management Chip by natlinear - Datasheet Preview — Official preview page of the **LN2052** 1A Is Compatible With The USB Interface / Linear Battery Management Chip datasheet (natlinear).

Datasheet Details

Part number	LN2052
Manufacturer	natLinear
File Size	234.88 KB
Description	1A Is Compatible With The USB Interface / Linear Battery Management Chip
Datasheet	LN2052-natlinear.pdf

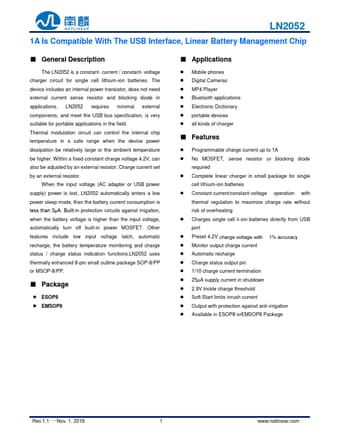

Additional preview pages of the LN2052 datasheet.

LN2052 Product details

Description

The LN2052 is a constant- current / constant- voltage charger circuit for single cell lithium-ion batteries.

Features

Programmable charge current up to 1A.
No MOSFET, sense resistor or blocking diode required.
Complete linear charger in small package for single cell lithium-ion batteries.
Constant-current/constant-voltage operation with thermal regulation to maximize charge rate without risk of overheating.
Charges single cell li-ion batteries directly from USB port.
Preset 4.2V.
Monitor output charge current.
Automatic recharge.
Charge status output pin.
1/10.
