2N60G, 2N60 - N-Channel Power MOSFET

nELL

The 2N60G by nELL is a N-Channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

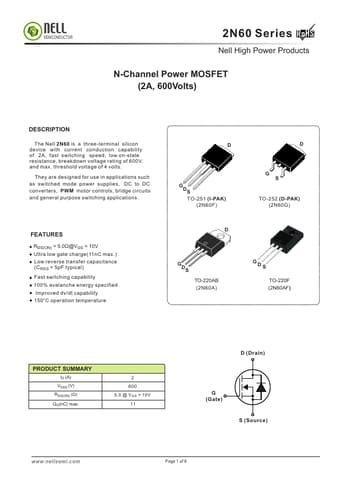

2N60G N-Channel Power MOSFET by nELL - Datasheet Preview — Official preview page of the **2N60G** N-Channel Power MOSFET datasheet (nELL).

Datasheet Details

Part number	2N60G, 2N60
Manufacturer	nELL
File Size	366.57 KB
Description	N-Channel Power MOSFET
Datasheet	2N60-nELL.pdf
Note	This datasheet PDF includes multiple part numbers: 2N60G, 2N60. Please refer to the document for exact specifications by model.
Additional preview pages of the 2N60G datasheet.

2N60G Product details

Description

The Nell 2N60 is a three-terminal silicon device with current conduction capability of 2A, fast switching speed, low on-state resistance, breakdown voltage rating of 600V, and max.

Features

RDS(ON) = 5.0Ω@VGS = 10V Ultra low gate charge(11nC max. ) Low reverse transfer capacitance (CRSS = 5pF typical) Fast switching capability 100% avalanche energy specified Improved dv/dt capability 150°C operation temperature D G D S TO-251 (I-PAK) (2N60F) D D G S TO-252 (D-PAK) (2N60G) G DS TO-220AB (2N60A) GDS TO-220F (2N60AF).
