2N60-TC - N-CHANNEL MOSFET

UTC

📥 Download Datasheet

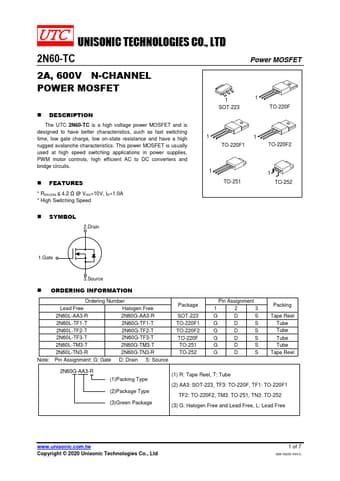

2N60-TC Datasheet Preview — Preview of 2N60-TC PDF

Datasheet Details

Part number	2N60-TC
Manufacturer	UTC
File Size	297.41 KB
Description	N-CHANNEL MOSFET
Datasheet	2N60-TC-UTC.pdf

2N60-TC Product details

Description

The UTC 2N60-TC is a high voltage power MOSFET and is designed to have better characteristics, such as fast switching time, low gate charge, low on-state resistance and have a high rugged avalanche characteristics.This power MOSFET is usually used at high speed switching applications in power supplies, PWM motor controls, high efficient AC to DC converters and bridge circuits.

Features

S.
RDS(ON) ≤ 4.2 Ω @ VGS=10V, ID=1.0A.
High Switching Speed 1 SOT-223 1 TO-220F 11 TO-220F1 TO-220F2 1 TO-251 1 TO-252.
SYMBOL 2.Drain 1.Gate 3.Source.
