Adapters
V1.1

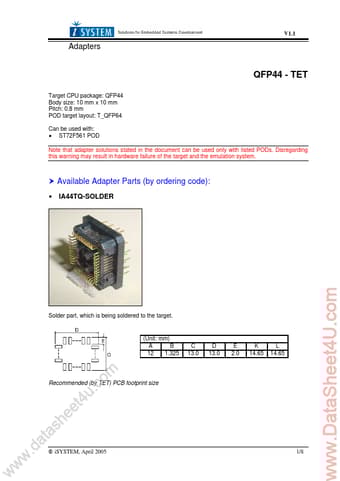

QFP44 - TET
Target CPU package: QFP44 Body size: 10 mm x 10 mm Pitch: 0.8 mm POD target layout: T_QFP64 Can be used with: • ST72F561 POD Note that adapter solutions stated in the document can be used only with listed PODs. Disregarding this warning may result in hardware failure of the target and the emulation system.
h Available Adapter Parts (by ordering code):
• IA44TQ-SOLDER
Solder part, which is being soldered to the target.
(Unit: mm) A B 12 1.325
C 13.0
D 13.0
E 2.0
K 14.65
L 14.65
Recommended (by TET) PCB footprint size
w
w
w
.
t a d
h s a
t e e
. u 4
m o c
© iSYSTEM, April 2005
1/8
www.DataSheet4U.com
IA44TQ-SOLDER dimensions
•
IA64P44ST7-TQ
The IA64P44ST7-TQ adapter consists of two parts.
