iC-WKL, iC-WKL-iC 2.4V CW LASER DIODE DRIVER

iC-WKL Description

iC-WK, iC-WKL 2.4V CW LASER DIODE DRIVER .
The iC-WK/L device is a driver for laser diodes in continuous wave operation which requires only four external components.

iC-WKL Features

* ° CW operation up to 70mA from 2.4..6V supply voltage and up to 4A with an external power transistor ° Rapid soft start after power-on typical within 70µs ° Simple power adjustment via the external resistor ° Control loop accuracy better than 1% with changes in temperature, supply voltage and load c

iC-WKL Applications

* ° Battery-powered LD modules ° LD Pointers ° Bar-code readers PACKAGES SO8 MSOP8 BLOCK DIAGRAM +2.4.. +6V 6 VCC CVCC 47nF TRANSIENT PROTECTION iC-WKL 1 D LDA 7 CLDA . .1µF. . MDK 4 - MDA 5 + VREF 0.5V CI 2 LDK 8 MD LD NQ R GND RGND 1 0..3 GND OVER CURRENT/ OVER TEMP. iC-WK FEE

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: iC-WKL, iC-WKL-iC. Please refer to the document for exact specifications by model.

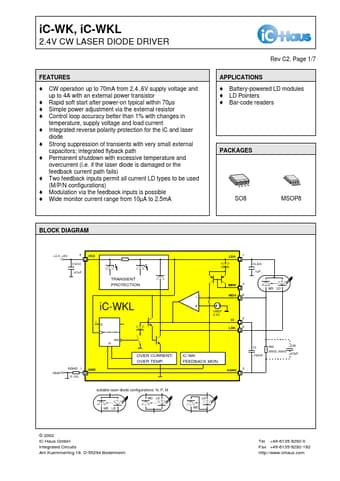

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
iC-WKL, iC-WKL-iC
Manufacturer
iC-Haus
File Size
86.68 KB
Datasheet
iC-WKL-iC-Haus.pdf
Description
2.4V CW LASER DIODE DRIVER
Note
This datasheet PDF includes multiple part numbers: iC-WKL, iC-WKL-iC.
Please refer to the document for exact specifications by model.
