iC-WK, iC-WK-iC 2.4V CW LASER DIODE DRIVER

iC-WK Description

iC-WK 2.4V CW LASER DIODE DRIVER .
The iC-WK device is a driver for laser diodes in continuous wave operation which requires only four external components.

iC-WK Features

* ° CW operation up to 60mA from 2.4..6V supply voltage ° Rapid soft start after power-on ° Simple power adjustment via the external resistor ° Control loop accuracy better than 1% with changes in temperature, supply voltage and load current ° Integrated reverse polarity protection for the iC and lase

iC-WK Applications

* ° Battery-powered LD modules ° LD Pointers PACKAGES (MSOP8) SO8 BLOCK DIAGRAM +2.4.. +5.5V 6 VCC CVCC 47nF TRANSIENT PROTECTION 1 D LDA 7 CLDA . .1µF. . MDK 4 - MDA 5 + VREF 0.5V CI 2 LDK 8 MD LD NQ R iC-WK OVER CURRENT OVER TEMP. CI RM 200 . .50k . .100nF. . GND 1 GND AGND 3 suitab

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: iC-WK, iC-WK-iC. Please refer to the document for exact specifications by model.

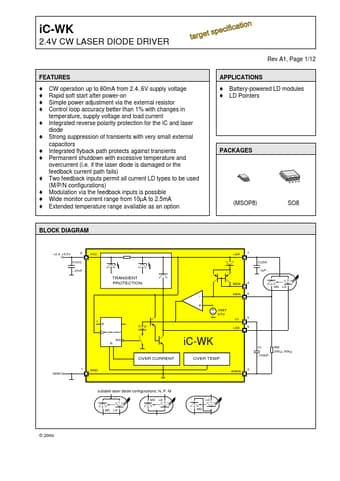

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
iC-WK, iC-WK-iC
Manufacturer
iC-Haus
File Size
343.88 KB
Datasheet
iC-WK-iC-Haus.pdf
Description
2.4V CW LASER DIODE DRIVER
Note
This datasheet PDF includes multiple part numbers: iC-WK, iC-WK-iC.
Please refer to the document for exact specifications by model.
