UC2525A - Regulating Pulse Width Modulators

Texas Instruments

The UC2525A by Texas Instruments is a Regulating Pulse Width Modulators. Below is the official datasheet preview.

📥 Download Datasheet

UC2525A Regulating Pulse Width Modulators by Texas Instruments - Datasheet Preview — Official preview page of the **UC2525A** Regulating Pulse Width Modulators datasheet (Texas Instruments).

Datasheet Details

Part number	UC2525A
Manufacturer	Texas Instruments
File Size	962.08 KB
Description	Regulating Pulse Width Modulators
Datasheet	UC2525A-etcTI.pdf

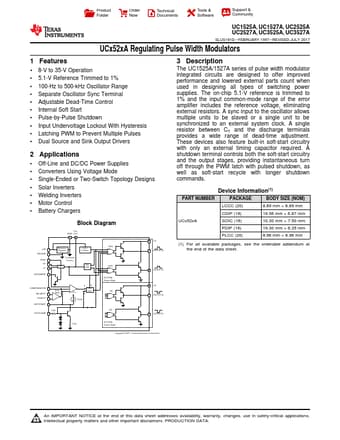

Additional preview pages of the UC2525A datasheet.

UC2525A Product details

Description

The UC1525A/1527A series of pulse width modulator integrated circuits are designed to offer improved performance and lowered external parts count when used in designing all types of switching power supplies.

Features

1 8-V to 35-V Operation.
5.1-V Reference Trimmed to 1%.
100-Hz to 500-kHz Oscillator Range.
Separate Oscillator Sync Terminal.
Adjustable Dead-Time Control.
Internal Soft Start.
Pulse-by-Pulse Shutdown.
Input Undervoltage Lockout With Hysteresis.
Latching PWM to Prevent Multiple Pulses.
Dual Source and Sink Output Drivers 2.
