UC2525B - Regulating Pulse Width Modulators

Unitrode

The UC2525B by Unitrode is a Regulating Pulse Width Modulators. Below is the official datasheet preview.

📥 Download Datasheet

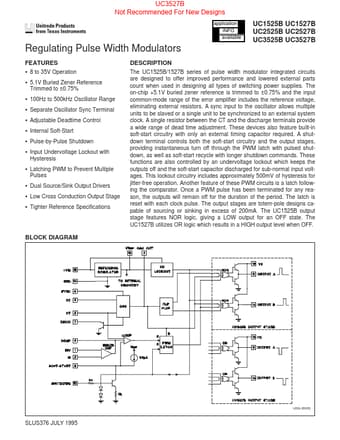

UC2525B Regulating Pulse Width Modulators by Unitrode - Datasheet Preview — Official preview page of the **UC2525B** Regulating Pulse Width Modulators datasheet (Unitrode).

Datasheet Details

Part number	UC2525B
Manufacturer	Unitrode
File Size	2.09 MB
Description	Regulating Pulse Width Modulators
Datasheet	UC2525B-Unitrode.pdf
Additional preview pages of the UC2525B datasheet.

UC2525B Product details

Description

The UC1525B/1527B series of pulse width modulator integrated circuits are designed to offer improved performance and lowered external parts count when used in designing all types of switching power supplies.

Features

8 to 35V Operation.
5.1V Buried Zener Reference Trimmed to ±0.75%.
100Hz to 500kHz Oscillator Range.
Separate Oscillator Sync Terminal.
Adjustable Deadtime Control.
Internal Soft-Start.
Pulse-by-Pulse Shutdown.
Input Undervoltage Lockout with Hysteresis.
Latching PWM to Prevent Multiple Pulses.
Dual Source/Sink Output Drivers.
Low Cross Conduction Output Stage.
Tighter Reference Specifica.
