TRF370317 QUADRATURE MODULATORS

TRF370317 Description

TRF370317 www.ti.com SLWS209B * MARCH 2008 * REVISED JANUARY 2010 0.4-GHz TO 4-GHz QUADRATURE MODULATOR Check for Samples: TRF370317.
The TRF370317 is a low-noise direct quadrature modulator, capable of converting complex modulated signals from baseband or IF directly up to RF.

TRF370317 Features

* 1
* 2 76-dBc Single-Carrier WCDMA ACPR at
* 8 dBm Channel Power
* Low Noise Floor:
* 163 dBm/Hz
* OIP3 of 26.5 dBm
* P1dB of 12 dBm
* Unadjusted Carrier Feedthrough of
* 40 dBm
* Unadjusted Side-Band Suppression of
* 45 dBc

TRF370317 Applications

* Cellular Base Station Transceiver
* CDMA: IS95, UMTS, CDMA2000, TD-SCDMA
* TDMA: GSM, IS-136, EDGE/UWC-136
* Multicarrier GSM
* WiMAX: 802.16d/e
* 3GPP: LTE
* Wireless MAN Wideband Transceivers RGE PACKAGE (TOP VIEW) 24 VCC 23 GND 22 BBIN 2

📥 Download Datasheet

Preview of TRF370317 PDF

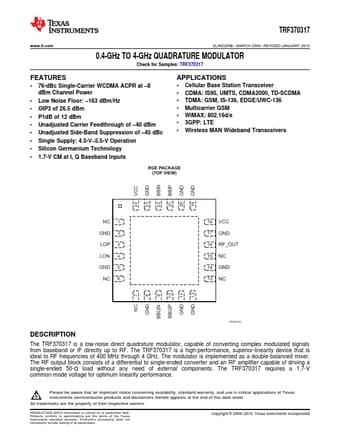

datasheet Preview Page 2 datasheet Preview Page 3
