TRF370315 QUADRATURE MODULATORS

TRF370315 Description

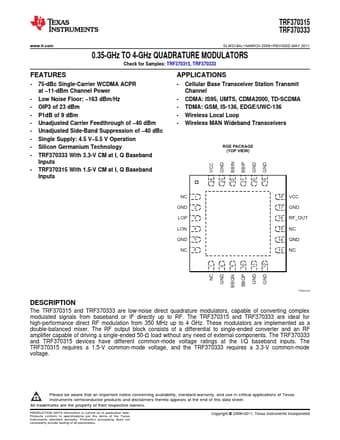

TRF370315 TRF370333 www.ti.com SLWS184J * MARCH 2006 * REVISED MAY 2011 0.35-GHz TO 4-GHz QUADRATURE MODULATORS Check for Samples: T.
The TRF370315 and TRF370333 are low-noise direct quadrature modulators, capable of converting complex modulated signals from baseband or IF directly u.

TRF370315 Features

* 1
* 2 75-dBc Single-Carrier WCDMA ACPR at
* 11-dBm Channel Power
* Low Noise Floor:
* 163 dBm/Hz
* OIP3 of 23 dBm
* P1dB of 9 dBm
* Unadjusted Carrier Feedthrough of
* 40 dBm
* Unadjusted Side-Band Suppression of
* 40 dBc

TRF370315 Applications

* Cellular Base Transceiver Station Transmit Channel
* CDMA: IS95, UMTS, CDMA2000, TD-SCDMA
* TDMA: GSM, IS-136, EDGE/UWC-136
* Wireless Local Loop
* Wireless MAN Wideband Transceivers SPACE THE FINAL FRONTIER RGE PACKAGE (TOP VIEW) 24 VCC 23 GND 22 BBIN 21 B
