TPS92551EVM, TPS92551 - 450mA 23W Constant Current Buck LED Driver Micro-Module

TPS92551EVM Description

TPS92551, TPS92551EVM www.ti.com SNVS805C * MAY 2012 * REVISED MAY 2013 450mA 23W Constant Current Buck LED Driver Micro-Module Che.
The TPS92551 Constant Current Buck LED Driver Micro-Module drives maximum 450mA LED current up to 16 LEDs in a single string (maximum 23W).

TPS92551EVM Features

* 1
* 2 Integrated All Power Components Including the Power Inductor
* Wide Input Voltage Range : 4.5V - 60V
* Constant Switching Frequency at 800kHz
* High Contrast Ratio (Minimum Dimming Current Pulse width < 16µs)
* Drives up to 16 LEDs in series at 60V input

TPS92551EVM Applications

* with up to 95% power efficiency. It accepts an input voltage ranging from 4.5V to 60V and delivers a 350mA LED current as default. The LED current is adjustable from 300mA to 450mA by charging a single external resistor. The module operates at constant switching frequency (800kHz) with low Electro M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPS92551EVM, TPS92551. Please refer to the document for exact specifications by model.

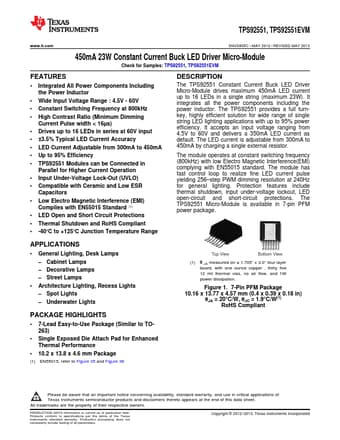

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPS92551EVM, TPS92551
Manufacturer
Texas Instruments ↗
File Size
2.21 MB
Datasheet
TPS92551-etcTI.pdf
Description
450mA 23W Constant Current Buck LED Driver Micro-Module
Note
This datasheet PDF includes multiple part numbers: TPS92551EVM, TPS92551.
Please refer to the document for exact specifications by model.
