TPS3840 - High Input Voltage Supervisor

Description

Wide Vin allows monitoring 9V rails or batteries without external components and 24V rails with external resistors.

Nano-Iq extends battery life for low power applications and minimizes current consumption when using external resistors.

Features

  • 1 Wide operating voltage: 1.5 V to 10 V.
  • Nano supply current: 300 nA (Typ), 700 nA (Max).
  • Fixed threshold voltage (VIT-).
  • Threshold from 1.6 V to 4.9 V in 0.1-V steps.
  • High accuracy: 1% (Typ), 1.5% (Max).
  • Built-in hysteresis (VIT+).
  • 1.6 V < VIT- ≤ 3.0 V = 100 mV (Typical).
  • 3.1 V ≤ VIT- < 4.9 V = 200 mV (Typical).
  • Start-up delay (tSTRT): 220 µs (Typ), 350 µs (Max).
  • Programmable reset time delay (tD):.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TPS3-100 Digital Power Controllers Operating Manual STS
TPS3-160 Digital Power Controllers Operating Manual STS
TPS3-60 Digital Power Controllers Operating Manual STS
TPS3.125 Digital Power Controllers Operating Manual STS
TPS3.200 Digital Power Controllers Operating Manual STS

Other Datasheets by Texas Instruments

Part Number Description
TPS3840-Q1 Automotive Voltage Supervisor
TPS3847 380-nA Voltage Monitor
TPS38-Q1 65V Dual Channel Overvoltage or Undervoltage Detector
TPS3800 ULTRA-SMALL SUPPLY VOLTAGE SUPERVISORS
TPS3801 ULTRA-SMALL SUPPLY VOLTAGE SUPERVISORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

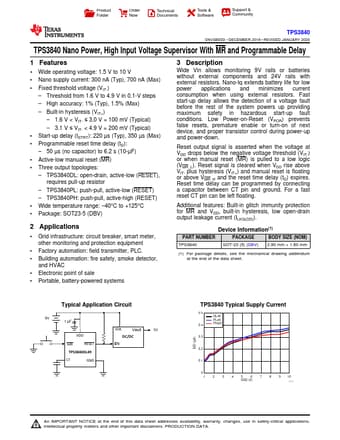

Product Folder Order Now Technical Documents Tools & Software Support & Community TPS3840 SNVSB03D – DECEMBER 2018 – REVISED JANUARY 2020 TPS3840 Nano Power, High Input Voltage Supervisor With MR and Programmable Delay 1 Features •1 Wide operating voltage: 1.5 V to 10 V • Nano supply current: 300 nA (Typ), 700 nA (Max) • Fixed threshold voltage (VIT-) – Threshold from 1.6 V to 4.9 V in 0.1-V steps – High accuracy: 1% (Typ), 1.5% (Max) – Built-in hysteresis (VIT+) – 1.6 V < VIT- ≤ 3.0 V = 100 mV (Typical) – 3.1 V ≤ VIT- < 4.9 V = 200 mV (Typical) • Start-up delay (tSTRT): 220 µs (Typ), 350 µs (Max) • Programmable reset time delay (tD): – 50 µs (no capacitor) to 6.
