TPS259251, TPS259250, eFuse Protection Switches

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community TPS259250, TPS259251, TPS259260, TPS259261 SLVSCQ3B .
The TPS25925x/6x family of eFuses is a highly integrated circuit protection and power management solution in a tiny package.

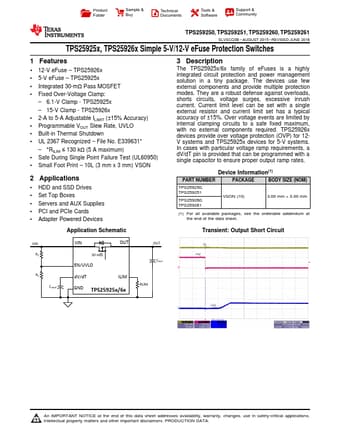

datasheet Preview Page 1 from Datasheet4u.com

TPS259250-etcTI.pdf

TPS259251 Datasheet Preview — This datasheet PDF includes multiple part numbers: TPS259251, TPS259250. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TPS259251, TPS259250

Manufacturer:

Texas Instruments ↗

File Size:

2.36 MB

Description:

eFuse Protection Switches

Note:

This datasheet PDF includes multiple part numbers: TPS259251, TPS259250.
Please refer to the document for exact specifications by model.

Features

* 1 12-V eFuse
* TPS25926x
* 5-V eFuse
* TPS25925x
* Integrated 30-mΩ Pass MOSFET
* Fixed Over-Voltage Clamp:
* 6.1-V Clamp - TPS25925x
* 15-V Clamp - TPS25926x
* 2-A to 5-A Adjustable ILIMIT (±15% Accuracy)
* Programmabl

Applications

* HDD and SSD Drives
* Set Top Boxes
* Servers and AUX Supplies
* PCI and PCIe Cards
