TPS25921, TPS25921A - eFuse

Texas Instruments

The TPS25921 by Texas Instruments is a eFuse. Below is the official datasheet preview.

📥 Download Datasheet

TPS25921 eFuse by Texas Instruments - Datasheet Preview — Official preview page of the TPS25921 eFuse datasheet (Texas Instruments).

Datasheet Details

Part number	TPS25921, TPS25921A
Manufacturer	Texas Instruments
File Size	2.27 MB
Description	eFuse
Datasheet	TPS25921A-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TPS25921, TPS25921A. Please refer to the document for exact specifications by model.

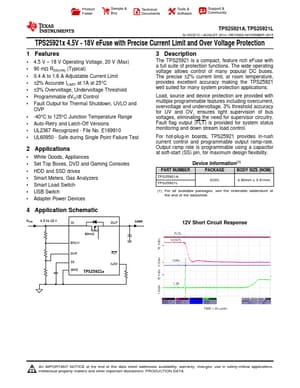

Additional preview pages of the TPS25921 datasheet.

TPS25921 Product details

Description

The TPS25921 is a compact, feature rich eFuse with a full suite of protection functions.

Features

1 4.5 V.
18 V Operating Voltage, 20 V (Max).
90 mΩ RDS(ON) (Typical).
0.4 A to 1.6 A Adjustable Current Limit.
±2% Accurate ILIMIT at 1A at 25°C.
±3% Overvoltage, Undervoltage Threshold.
Programmable dVO/dt Control.
Fault Output for Thermal Shutdown, UVLO and OVP.
-40°C to 125°C Junction Temperature Range.
Auto-Retry and Latch-Off Versions.
UL2367 Recognized - File No. E169910.
UL60950 - S.
