TPA6017A2 - 2-W Stereo Audio Power Amplifier

Texas Instruments

The TPA6017A2 by Texas Instruments is a 2-W Stereo Audio Power Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

TPA6017A2 2-W Stereo Audio Power Amplifier by Texas Instruments - Datasheet Preview — Official preview page of the **TPA6017A2** 2-W Stereo Audio Power Amplifier datasheet (Texas Instruments).

Datasheet Details

Part number	TPA6017A2
Manufacturer	Texas Instruments
File Size	643.82 KB
Description	2-W Stereo Audio Power Amplifier
Datasheet	TPA6017A2-etcTI.pdf

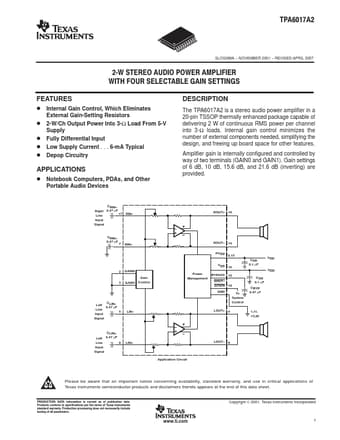

Additional preview pages of the TPA6017A2 datasheet.

TPA6017A2 Product details

Description

The TPA6017A2 is a stereo audio power amplifier in a 20-pin TSSOP thermally enhanced package capable of delivering 2 W of continuous RMS power per channel into 3-Ω loads.

Features

D Internal Gain Control, Which Eliminates External Gain-Setting Resistors D 2-W/Ch Output Power Into 3-Ω Load From 5-V Supply D Fully Differential Input D Low Supply Current . . . 6-mA Typical D Depop Circuitry.
