TPA6010A4 - STEREO 2.7-W AUDIO POWER AMPLIFIER

Texas Instruments

The TPA6010A4 by Texas Instruments is a STEREO 2.7-W AUDIO POWER AMPLIFIER. Below is the official datasheet preview.

📥 Download Datasheet

TPA6010A4 STEREO 2.7-W AUDIO POWER AMPLIFIER by Texas Instruments - Datasheet Preview — Official preview page of the **TPA6010A4** STEREO 2.7-W AUDIO POWER AMPLIFIER datasheet (Texas Instruments).

Datasheet Details

Part number	TPA6010A4
Manufacturer	Texas Instruments
File Size	1.03 MB
Description	STEREO 2.7-W AUDIO POWER AMPLIFIER
Datasheet	TPA6010A4-etcTI.pdf

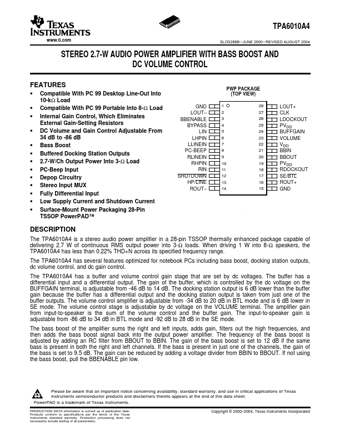

Additional preview pages of the TPA6010A4 datasheet.

TPA6010A4 Product details

Description

The TPA6010A4 is a stereo audio power amplifier in a 28-pin TSSOP thermally enhanced package capable of delivering 2.7 W of continuous RMS output power into 3-Ω loads.

Features

Compatible With PC 99 Desktop Line-Out Into 10-kΩ Load.
Compatible With PC 99 Portable Into 8-Ω Load.
Internal Gain Control, Which Eliminates External Gain-Setting Resistors.
DC Volume and Gain Control Adjustable From 34 dB to -86 dB.
Bass Boost.
Buffered Docking Station Outputs.
2.7-W/Ch Output Power Into 3-Ω Load.
PC-Beep Input.
Depop Circuitry.
Stereo Input MUX.
Fully Differential Input.
