TMUX6213, TMUX6211, 4-Channel Precision Switches

TMUX6211, TMUX6212, TMUX6213 SCDS431D * OCTOBER 2020 * REVISED JULY 2024 TMUX621x 36V, Low-RON, 1:1 (SPST), 4-Channel Precision Switch.
The TMUX6211, TMUX6212, and TMUX6213 are complementary metal-oxide semiconductor (CMOS) switches with four independently selectable 1:1, single-pole,.

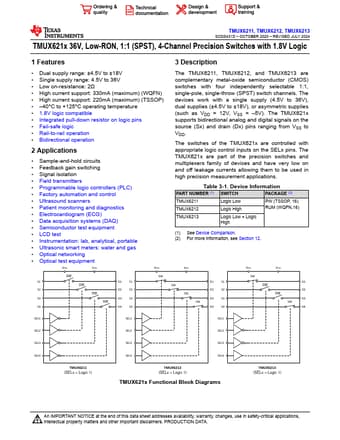

datasheet Preview Page 1 from Datasheet4u.com

TMUX6211-etcTI.pdf

TMUX6213 Datasheet Preview — This datasheet PDF includes multiple part numbers: TMUX6213, TMUX6211. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TMUX6213, TMUX6211

Manufacturer:

Texas Instruments ↗

File Size:

2.72 MB

Description:

4-Channel Precision Switches

Note:

This datasheet PDF includes multiple part numbers: TMUX6213, TMUX6211.
Please refer to the document for exact specifications by model.

Features

* Dual supply range: ±4.5V to ±18V
* Single supply range: 4.5V to 36V
* Low on-resistance: 2Ω
* High current support: 330mA (maximum) (WQFN)
* High current support: 220mA (maximum) (TSSOP)
* 40°C to +125°C operating temperature
* 1.8V

Applications

* Sample-and-hold circuits
* Feedback gain switching
* Signal isolation
* Field transmitters
* Programmable logic controllers (PLC)
* Factory automation and control
* Ultrasound scanners
* Patient monitoring and diagnostics
* E
