TMUX6104, 4:1 Analog Multiplexer

Product Folder Order Now Technical Documents Tools & Software Support & Community TMUX6104 SCDS376A * FEBRUARY 2018 * REVISED SEP.
The TMUX6104 is a modern complementary metaloxide semiconductor (CMOS) analog multiplexer (MUX) that offers 4:1 single-ended multiplexing.

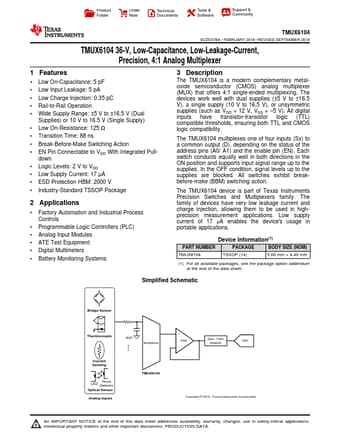

datasheet Preview Page 1 from Datasheet4u.com

TMUX6104-etcTI.pdf

TMUX6104 Datasheet Preview — Preview of TMUX6104 PDF

Datasheet Details

Part number:

TMUX6104

Manufacturer:

Texas Instruments ↗

File Size:

1.06 MB

Description:

4:1 Analog Multiplexer

Features

* 1 Low On-Capacitance: 5 pF
* Low Input Leakage: 5 pA
* Low Charge Injection: 0.35 pC
* Rail-to-Rail Operation
* Wide Supply Range: ±5 V to ±16.5 V (Dual Supplies) or 10 V to 16.5 V (Single Supply)
* Low On-Resistance: 125 Ω
* Transition Time:

Applications

* Factory Automation and Industrial Process Controls
* Programmable Logic Controllers (PLC)
* Analog Input Modules
* ATE Test Equipment
* Digital Multimeters
