TMDS181 - 6 Gbps TMDS Retimer

TMDS181 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community TMDS181, TMDS181I SLASE75D * AUGUST 2015 * REVI.
The TMDS181x is a digital video interface (DVI) or high-definition multimedia interface (HDMI™) retimer.

TMDS181 Features

* 1 HDMI™ Input Port to Output Port With CDR Supporting Up to 6 Gbps Data Rates
* Compatible With HDMI™ Electrical Parameters Up to 6 Gbps in Retimer Mode
* Support 4k2k60p and Up to WUXGA 16-Bit Color Depth or 1080p With Higher Refresh Rates
* Retimes Input Stream to

TMDS181 Applications

* Digital TV
* Digital Projector
* Audio/Video Equipment
* Blu-ray™ DVD
* Monitors
* Desktops/ All-in-Ones
* Active Cables SPACE Simplified Schematic HPD_SRC IN_CLKp IN_CLKn VBIAS 50Q 50Q EQ VBIAS GPU IN_D[2:0]p IN_D[2:0]n 50Q 50Q EQ

📥 Download Datasheet

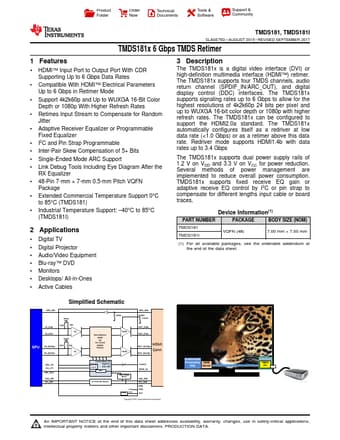

Preview of TMDS181 PDF
