TMDS171I, TMDS171 - 3.4 Gbps TMDS RETIMER

TMDS171I Description

Product Folder Order Now Technical Documents Tools & Software Support & Community TMDS171, TMDS171I SLLSEN7E * OCTOBER 2015 * REV.
The TMDS171 is a digital video interface (DVI) or high-definition multimedia interface (HDMI) retimer.

TMDS171I Features

* 1 HDMI Input Port to Output Port with CDR Supporting up to 3.4 Gbps Data Rates
* Compatible with HDMI1.4b Electrical Parameters.
* Support for 4k2k30p and up to WUXGA 12-bit Color Depth or 1080p with Higher Refresh Rates™
* Retimes Input Stream to Compensate for Rand

TMDS171I Applications

* Digital TV
* Digital Projector
* Audio/Video Equipment
* Blu-Ray DVD
* Monitors
* Desktops/ All-in-Ones

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TMDS171I, TMDS171. Please refer to the document for exact specifications by model.

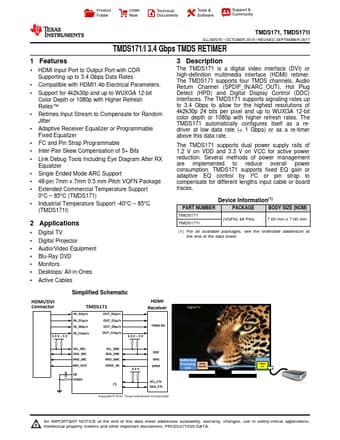

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TMDS171I, TMDS171
Manufacturer
Texas Instruments ↗
File Size
3.35 MB
Datasheet
TMDS171-etcTI.pdf
Description
3.4 Gbps TMDS RETIMER
Note
This datasheet PDF includes multiple part numbers: TMDS171I, TMDS171.
Please refer to the document for exact specifications by model.
