TMAG5124-Q1 - Automotive Hall-Effect Switch Sensor

Texas Instruments

The TMAG5124-Q1 by Texas Instruments is a Automotive Hall-Effect Switch Sensor. Below is the official datasheet preview.

📥 Download Datasheet

TMAG5124-Q1 Automotive Hall-Effect Switch Sensor by Texas Instruments - Datasheet Preview — Official preview page of the TMAG5124-Q1 Automotive Hall-Effect Switch Sensor datasheet (Texas Instruments).

Datasheet Details

Part number	TMAG5124-Q1
Manufacturer	Texas Instruments
File Size	1.69 MB
Description	Automotive Hall-Effect Switch Sensor
Datasheet	TMAG5124-Q1-etcTI.pdf

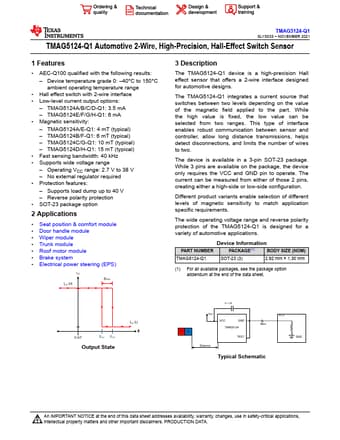

Additional preview pages of the TMAG5124-Q1 datasheet.

TMAG5124-Q1 Product details

Description

The TMAG5124-Q1 device is a high-precision Hall effect sensor that offers a 2-wire interface designed for automotive designs.

Features

AEC-Q100 qualified with the following results:.
Device temperature grade 0:.
40°C to 150°C ambient operating temperature range.
Hall effect switch with 2-wire interface.
Low-level current output options:.
TMAG5124A/B/C/D-Q1: 3.5 mA.
TMAG5124E/F/G/H-Q1: 6 mA.
Magnetic sensitivity:.
TMAG5124A/E-Q1: 4 mT (typical).
TMAG5124B/F-Q1: 6 mT (typical).
TMAG5124C/G-Q1: 10 mT (typical).
TMAG5124D/H-.
