TMAG5110-Q1 - Dual-Channel High-Sensitivity Hall-Effect Latch

Texas Instruments

The TMAG5110-Q1 by Texas Instruments is a Dual-Channel High-Sensitivity Hall-Effect Latch. Below is the official datasheet preview.

📥 Download Datasheet

TMAG5110-Q1 Dual-Channel High-Sensitivity Hall-Effect Latch by Texas Instruments - Datasheet Preview — Official preview page of the TMAG5110-Q1 Dual-Channel High-Sensitivity Hall-Effect Latch datasheet (Texas Instruments).

Datasheet Details

Part number	TMAG5110-Q1
Manufacturer	Texas Instruments
File Size	2.09 MB
Description	Dual-Channel High-Sensitivity Hall-Effect Latch
Datasheet	TMAG5110-Q1-etcTI.pdf

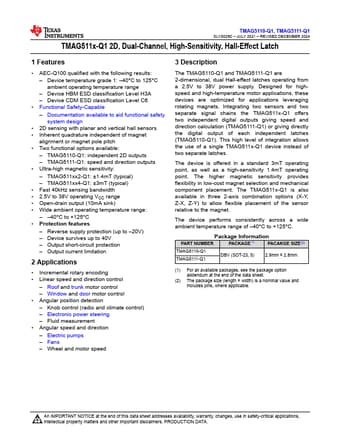

Additional preview pages of the TMAG5110-Q1 datasheet.

TMAG5110-Q1 Product details

Description

The TMAG5110-Q1 and TMAG5111-Q1 are 2-dimensional, dual Hall-effect latches operating from a 2.5V to 38V power supply.

Features

AEC-Q100 qualified with the following results:.
Device temperature grade 1:.
40°C to 125°C ambient operating temperature range.
Device HBM ESD classification Level H3A.
Device CDM ESD classification Level C6.
Functional Safety-Capable.
Documentation available to aid functional safety system design.
2D sensing with planar and vertical hall sensors.
Inherent quadrature independent of magnet alignment or magnet pole pi.
