TL072A, TL071 - Low-Noise JFET-Input Operational Amplifiers

Texas Instruments

The TL072A by Texas Instruments is a Low-Noise JFET-Input Operational Amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

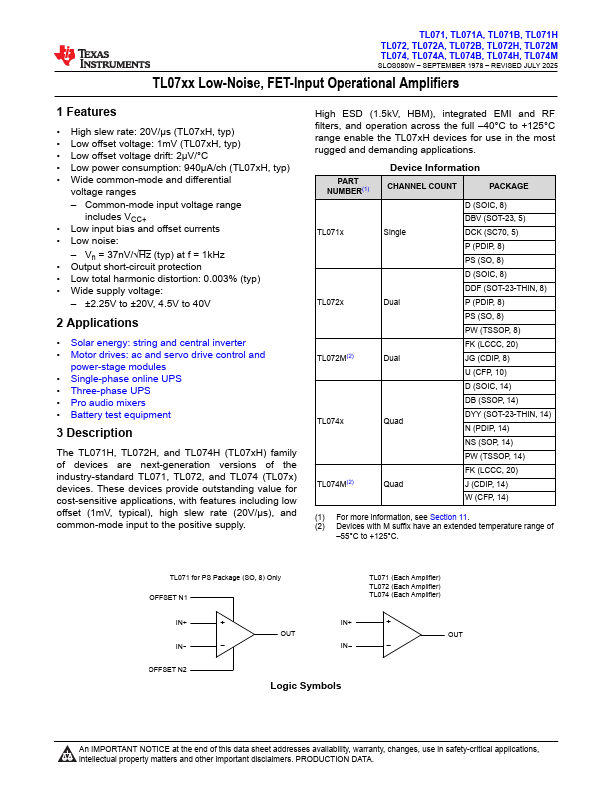

TL072A Low-Noise JFET-Input Operational Amplifiers by Texas Instruments - Datasheet Preview — Official preview page of the **TL072A** Low-Noise JFET-Input Operational Amplifiers datasheet (Texas Instruments).

Datasheet Details

Part number	TL072A, TL071
Manufacturer	Texas Instruments
File Size	5.73 MB
Description	Low-Noise JFET-Input Operational Amplifiers
Datasheet	TL071-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: TL072A, TL071. Please refer to the document for exact specifications by model.

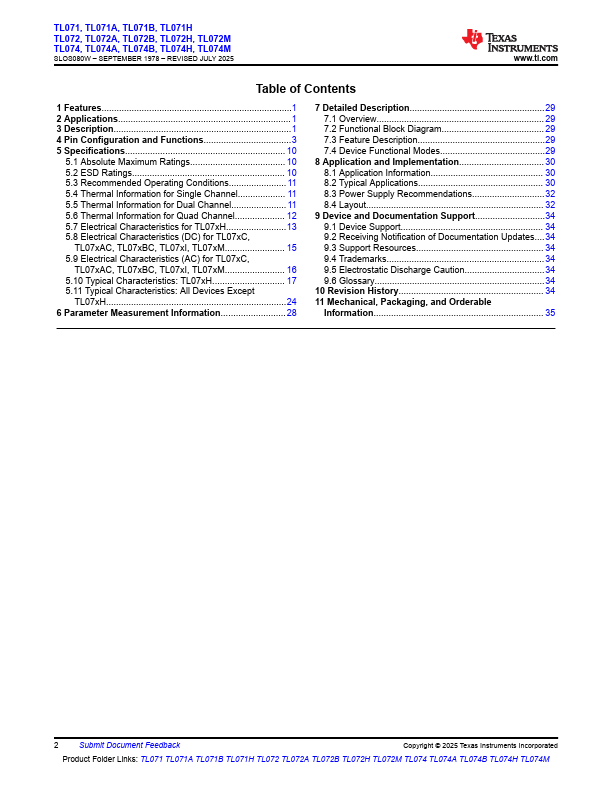

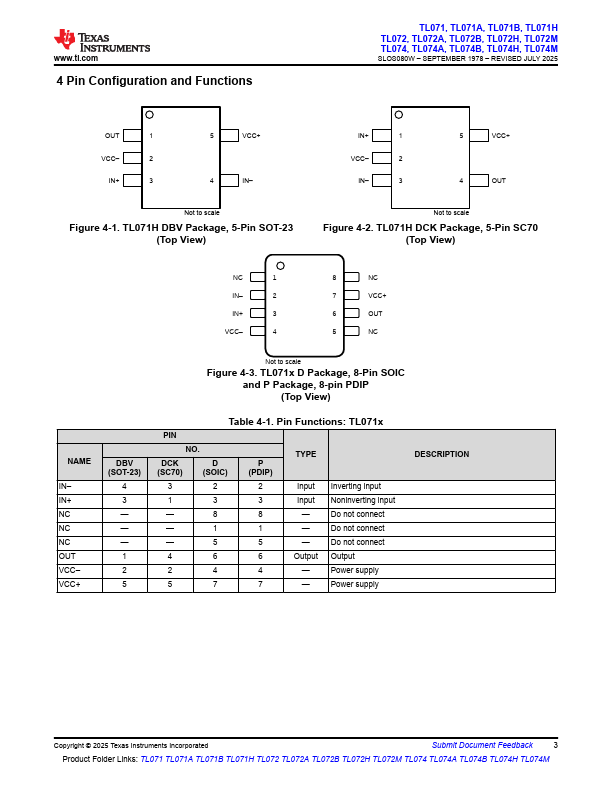

Additional preview pages of the TL072A datasheet.

TL072A Product details

Description

The TL071H, TL072H, and TL074H (TL07xH) family of devices are next-generation versions of the industry-standard TL071, TL072, and TL074 (TL07x) devices.

Features

High slew rate: 20V/μs (TL07xH, typ).
Low offset voltage: 1mV (TL07xH, typ).
Low offset voltage drift: 2μV/°C.
Low power consumption: 940μA/ch (TL07xH, typ).
Wide common-mode and differential voltage ranges.
Common-mode input voltage range includes VCC+.
Low input bias and offset currents.
Low noise:.
Vn = 37nV/√Hz (typ) at f = 1kHz.
Output short-circuit protection.
Low total harmonic distortion:.
