THS8134A, THS8134 80-MSPS VIDEO D/A CONVERTER

THS8134A Description

THS8134, THS8134A, THS8134B TRIPLE 8-BIT, 80 MSPS VIDEO D/A CONVERTER WITH TRI-LEVEL SYNC GENERATION SLVS205D * MAY 1999 * REVISED MAR.
See ALSO: THS8133 (10 bit, pin-compatible) The THS8134 is a general-purpose triple high-speed D/A converter (DAC) optimized for use in video/graphic.

THS8134A Features

* D Triple 8-Bit D/A Converters D Minimum 80 MSPS Operation D Direct Drive of Doubly-Terminated 75-Ω Load Into Standard Video Levels D 3×8 Bit 4:4:4, 2×8 Bit 4:2:2 or 1×8 Bit 4:2:2 (ITU-BT.656) Multiplexed YPbPr/GBR Input Modes D Bi-Level (EIA) or Tri-Level (SMPTE) Sync Generation With 7:3 Video/Sync

THS8134A Applications

* D High-Definition Television (HDTV) Set-Top Boxes/Receivers D High-Resolution Image Processing D Desktop Publishing D Direct Digital Synthesis/I-Q Modulation NC NC RPr0 RPr1 RPr2 RPr3 RPr4 RPr5 RPr6 RPr7 BLANK SYNC TQFP-48 PowerPAD™ PACKAGE (TOP VIEW) M2 M1 AVSS ABPb AVDD ARPr AVSS AGY AVDD COMP

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: THS8134A, THS8134. Please refer to the document for exact specifications by model.

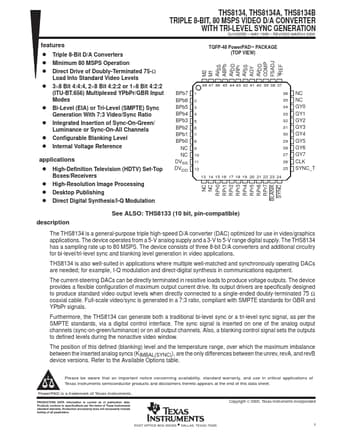

datasheet Preview Page 2 datasheet Preview Page 3
