THS8133A, THS8133 80-MSPS VIDEO D/A CONVERTER

THS8133A Description

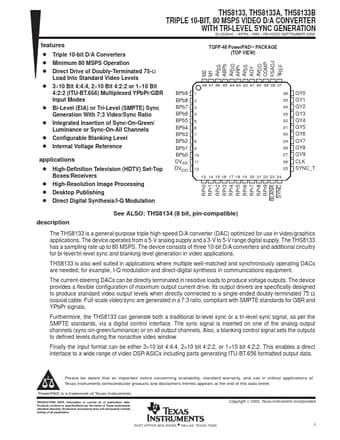

THS8133, THS8133A, THS8133B TRIPLE 10-BIT, 80 MSPS VIDEO D/A CONVERTER WITH TRI-LEVEL SYNC GENERATION SLVS204C * APRIL 1999 * REVISED .
See ALSO: THS8134 (8 bit, pin-compatible) The THS8133 is a general-purpose triple high-speed D/A converter (DAC) optimized for use in video/graphics.

THS8133A Features

* D Triple 10-bit D/A Converters D Minimum 80 MSPS Operation D Direct Drive of Doubly-Terminated 75-Ω Load Into Standard Video Levels D 3×10 Bit 4:4:4, 2×10 Bit 4:2:2 or 1×10 Bit 4:2:2 (ITU-BT.656) Multiplexed YPbPr/GBR Input Modes D Bi-Level (EIA) or Tri-Level (SMPTE) Sync Generation With 7:3 Video/S

THS8133A Applications

* D High-Definition Television (HDTV) Set-Top Boxes/Receivers D High-Resolution Image Processing D Desktop Publishing D Direct Digital Synthesis/I-Q Modulation RPr0 RPr1 RPr2 RPr3 RPr4 RPr5 RPr6 RPr7 RPr8 RPr9 BLANK SYNC TQFP-48 PowerPAD™ PACKAGE (TOP VIEW) M2 M1 AVSS ABPb AVDD ARPr AVSS AGY AVDD C

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: THS8133A, THS8133. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
THS8133A, THS8133
Manufacturer
Texas Instruments ↗
File Size
330.70 KB
Datasheet
THS8133-etcTI.pdf
Description
80-MSPS VIDEO D/A CONVERTER
Note
This datasheet PDF includes multiple part numbers: THS8133A, THS8133.
Please refer to the document for exact specifications by model.
