SN65LVDS95-EP Datasheet (Texas Instruments)

SN65LVDS95-EP, LVDS SERDES TRANSMITTER

ordering information The SN65LVDS95 LVDS serdes (serializer/deserializer) transmitter contains three 7-bit parallel-load serial-out shift registers, a 7× clock synthesizer, and four low-voltage differential signaling (LVDS) line drivers in a single integrated circuit.

These functions allow 21 bits o

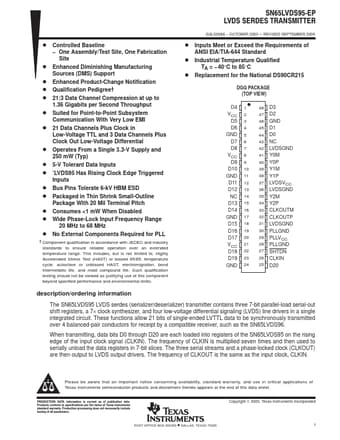

SN65LVDS95ĆEP LVDS SERDES TRANSMITTER D Controlled Baseline One Assembly/Test Site, One Fabrication Site D Enhanced Diminishing Manufacturing Sources (DMS) Support D Enhanced Product-Change Notification D Qualification Pedigree† D 21:3 Data Channel Compression at up to 1.36 Gigabits per Second Throughput D Suited for Point-to-Point Subsystem Communication With Very Low EMI D 21 Data Channels Plus Clock in Low-Voltage TTL and 3 Data Channels Plus Clock Out Low-Voltage Differential D Op
