SN65LVDS93A-Q1 TRANSMITTER

SN65LVDS93A-Q1 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community SN65LVDS93A-Q1 SLLSEM1B * FEBRUARY 2015 * RE.
The SN65LVDS93A-Q1 FlatLink™ transmitter contains four 7-bit parallel-load serial-out shift registers, a 7X clock synthesizer, and five LowVoltage Dif.

SN65LVDS93A-Q1 Features

* 1 AEC-Q100 Qualified with:
* Temperature Grade 3:
* 40°C to 85°C
* HBM ESD Classification 3
* CDM ESD Classification C6
* LVDS Display Series Interfaces Directly to LCD Display Panels With Integrated LVDS
* Package: 14-mm x 6.1-mm TSSOP

SN65LVDS93A-Q1 Applications

* LCD Display Panel Driver
* UMPC and Netbook PC
* Digital Picture Frame When transmitting, data bits D0 through D27 are each loaded into registers upon the edge of the input clock signal (CLKIN). The rising or falling edge of the clock can be selected via the clock select (

📥 Download Datasheet

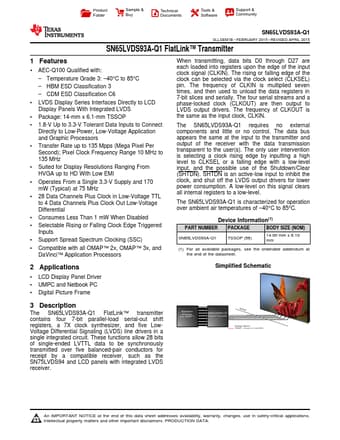

Preview of SN65LVDS93A-Q1 PDF
datasheet Preview Page 2 datasheet Preview Page 3
