SN65LVDM31D, SN65LVDM31 - HIGH-SPEED DIFFERENTIAL LINE DRIVER

Texas Instruments

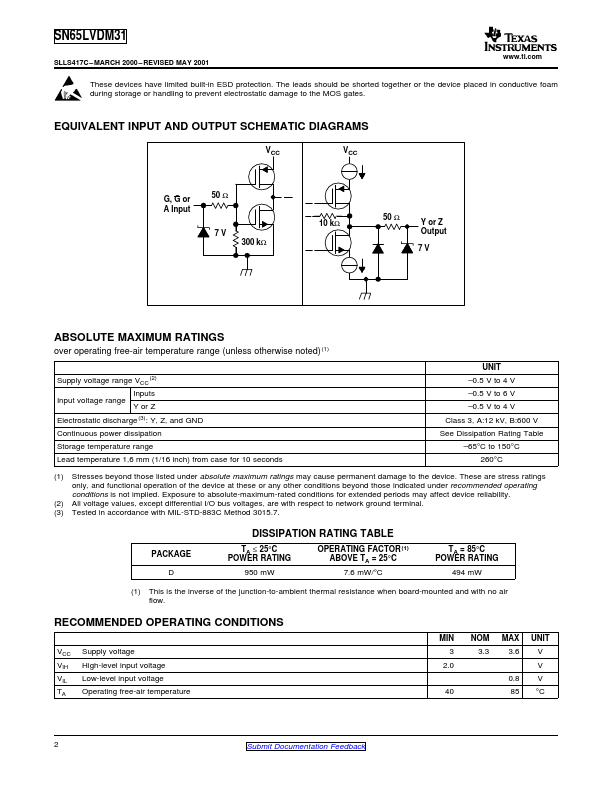

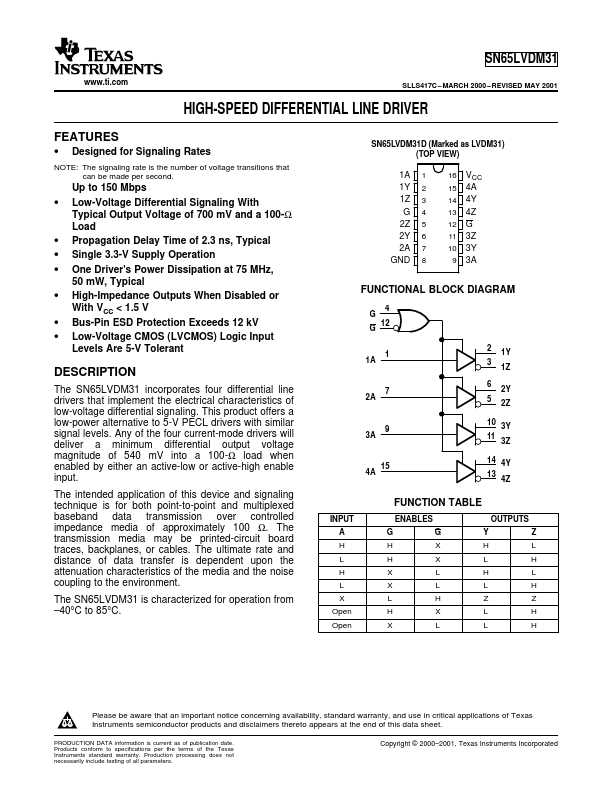

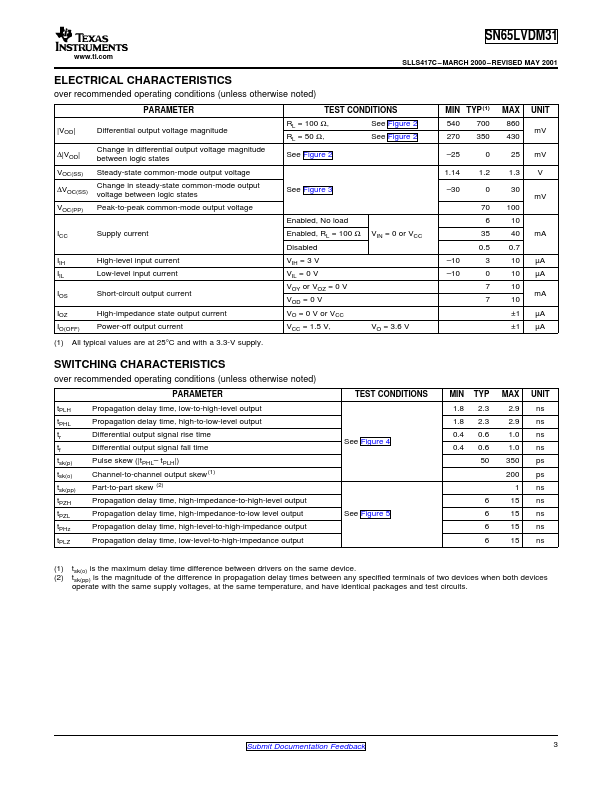

The SN65LVDM31D by Texas Instruments is a HIGH-SPEED DIFFERENTIAL LINE DRIVER. Below is the official datasheet preview.

Datasheet Details

Part number	SN65LVDM31D, SN65LVDM31
Manufacturer	Texas Instruments
File Size	265.47 KB
Description	HIGH-SPEED DIFFERENTIAL LINE DRIVER
Datasheet	SN65LVDM31-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: SN65LVDM31D, SN65LVDM31. Please refer to the document for exact specifications by model.
Additional preview pages of the SN65LVDM31D datasheet.

The SN65LVDM31 incorporates four differential line drivers that implement the electrical characteristics of low-voltage differential signaling.

Designed for Signaling Rates NOTE: The signaling rate is the number of voltage transitions that can be made per second. Up to 150 Mbps.
Low-Voltage Differential Signaling With Typical Output Voltage of 700 mV and a 100-Ω Load.
Propagation Delay Time of 2.3 ns, Typical.
Single 3.3-V Supply Operation.
One Driver's Power Dissipation at 75 MHz, 50 mW, Typical.
High-Impedance Outputs When Disabled or With VCC < 1.5 V.
Bus-Pin ESD Protect.
