SN65LVDM31 - HIGH-SPEED DIFFERENTIAL LINE DRIVER

Texas Instruments

The SN65LVDM31 by Texas Instruments is a HIGH-SPEED DIFFERENTIAL LINE DRIVER. Below is the official datasheet preview.

Datasheet Details

Part number	SN65LVDM31
Manufacturer	Texas Instruments
File Size	265.47 KB
Description	HIGH-SPEED DIFFERENTIAL LINE DRIVER
Datasheet	SN65LVDM31-etcTI.pdf

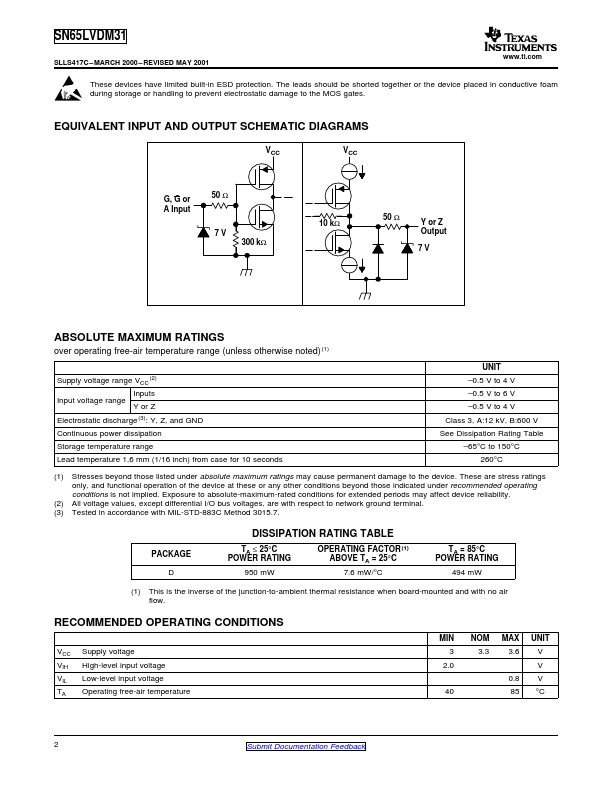

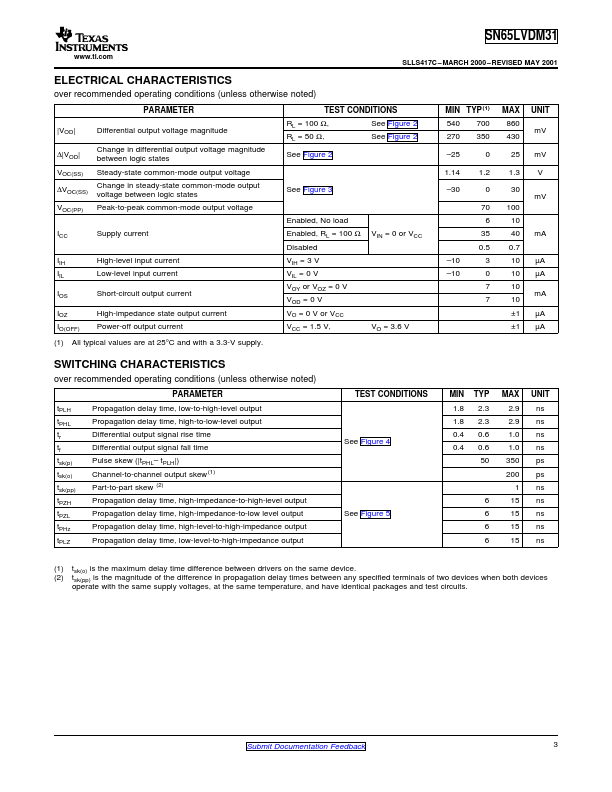

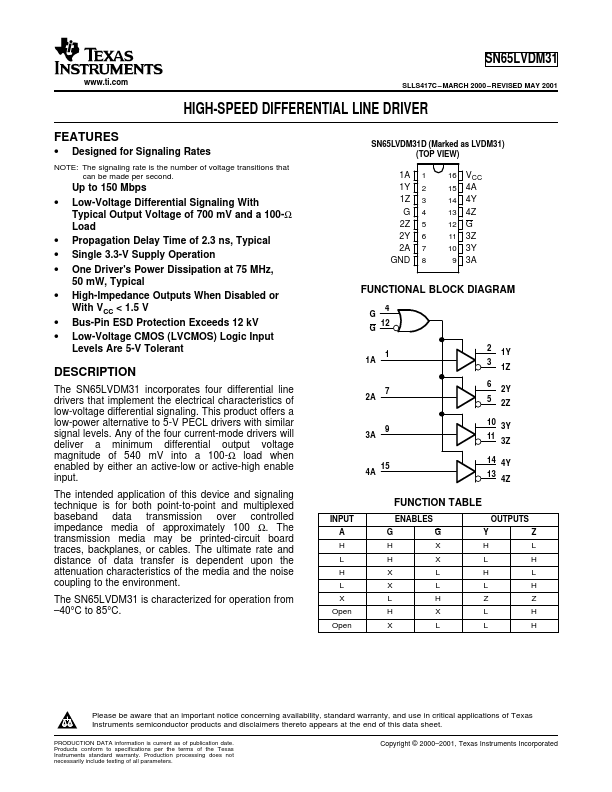

Additional preview pages of the SN65LVDM31 datasheet.

The SN65LVDM31 incorporates four differential line drivers that implement the electrical characteristics of low-voltage differential signaling.

Designed for Signaling Rates NOTE: The signaling rate is the number of voltage transitions that can be made per second. Up to 150 Mbps.
Low-Voltage Differential Signaling With Typical Output Voltage of 700 mV and a 100-Ω Load.
Propagation Delay Time of 2.3 ns, Typical.
Single 3.3-V Supply Operation.
One Driver's Power Dissipation at 75 MHz, 50 mW, Typical.
High-Impedance Outputs When Disabled or With VCC < 1.5 V.
Bus-Pin ESD Protect.
