OPA2180, OPA180 Zero-Drift Operational Amplifiers

OPA2180 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design OPA180, OPA2180, OPA4180 SBOS584E * N.
The OPA180, OPA2180 and OPA4180 operational amplifiers (op amps) use TI's proprietary zero-drift techniques to simultaneously provide low offset volta.

OPA2180 Features

* 1 Low Offset Voltage: 75 μV (Maximum)
* Zero-Drift: 0.1 μV/°C
* Low Noise: 10 nV/√Hz
* Very Low 1/f Noise
* Excellent DC Precision:
* PSRR: 126 dB
* CMRR: 114 dB
* Open-Loop Gain (AOL): 120 dB
* Quiescent Current: 525 μA (Maxim

OPA2180 Applications

* Bridge Amplifiers
* Strain Gauges
* Test Equipment
* Transducer Applications
* Temperature Measurement
* Electronic Scales
* Medical Instrumentation
* Resister Thermal Detectors

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OPA2180, OPA180. Please refer to the document for exact specifications by model.

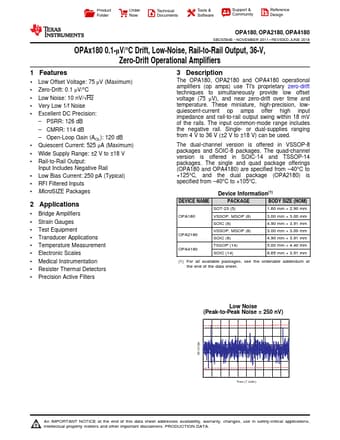

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPA2180, OPA180
Manufacturer
Texas Instruments ↗
File Size
1.76 MB
Datasheet
OPA180-etcTI.pdf
Description
Zero-Drift Operational Amplifiers
Note
This datasheet PDF includes multiple part numbers: OPA2180, OPA180.
Please refer to the document for exact specifications by model.
