OPA2132, OPA2132_Burr Datasheet - Burr-Brown

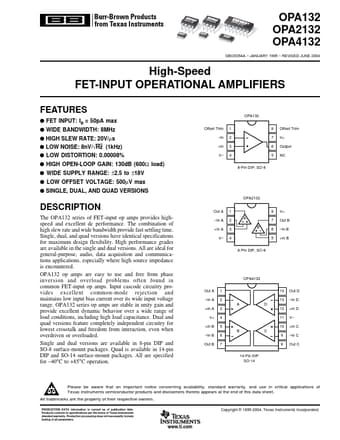

OPA2132 High-Speed FET-INPUT OPERATIONAL AMPLIFIERS

The OPA132 series of FET-input op amps provides highspeed and excellent dc performance. The combination of high slew rate and wide bandwidth provide fast settling time. Single, dual, and quad versions have identical specifications for maximum design flexibility. High performance grades are available.

OPA2132 Features

* q FET INPUT: IB = 50pA max q WIDE BANDWIDTH: 8MHz q HIGH SLEW RATE: 20V/µs q LOW NOISE: 8nV/√Hz (1kHz) q LOW DISTORTION: 0.00008% q HIGH OPEN-LOOP GAIN: 130dB (600Ω load) q WIDE SUPPLY RANGE: ±2.5 to ±18V q LOW OFFSET VOLTAGE: 500µV max q SINGLE, DUAL, AND QUAD VERSIONS OPA2132 Offset Trim

OPA2132_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: OPA2132, OPA2132_Burr. Please refer to the document for exact specifications by model.
OPA2132 Datasheet Preview Page 2 OPA2132 Datasheet Preview Page 3

Datasheet Details

Part number:

OPA2132, OPA2132_Burr

Manufacturer:

Burr-Brown

File Size:

521.68 KB

Description:

High-speed fet-input operational amplifiers.

Note:

This datasheet PDF includes multiple part numbers: OPA2132, OPA2132_Burr.
Please refer to the document for exact specifications by model.
