NE5532A, NE5532 Dual Low-Noise Operational Amplifiers

NE5532A Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community NE5532, NE5532A, SA5532, SA5532A SLOS075J * NOVEMBER.
The NE5532, NE5532A, SA5532, and SA5532A devices are high-performance operational amplifiers combining excellent DC and AC characteristics.

NE5532A Features

* 1 Equivalent Input Noise Voltage: 5 nV/√Hz Typ at 1 kHz
* Unity-Gain Bandwidth: 10 MHz Typ
* Common-Mode Rejection Ratio: 100 dB Typ
* High DC Voltage Gain: 100 V/mV Typ
* Peak-to-Peak Output Voltage Swing 26 V Typ With VCC± = ±15 V and RL = 600 Ω
* H

NE5532A Applications

* AV Receivers
* Embedded PCs
* Netbooks
* Video Broadcasting and Infrastructure: Scalable Platforms
* DVD Recorders and Players
* Multichannel Video Transcoders

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NE5532A, NE5532. Please refer to the document for exact specifications by model.

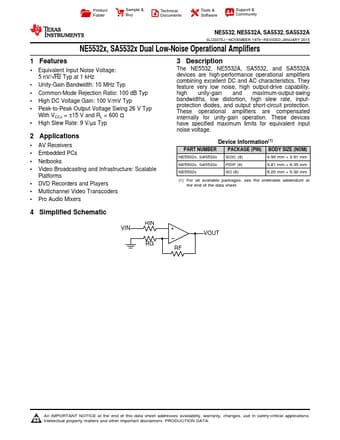

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NE5532A, NE5532
Manufacturer
Texas Instruments ↗
File Size
1.03 MB
Datasheet
NE5532-etcTI.pdf
Description
Dual Low-Noise Operational Amplifiers
Note
This datasheet PDF includes multiple part numbers: NE5532A, NE5532.
Please refer to the document for exact specifications by model.
