MSP430F2003 - Mixed-Signal Microcontroller

Product Overview

Texas Instruments

Datasheet Details

Part number	MSP430F2003
Manufacturer	Texas Instruments
File Size	2.07 MB
Description	Mixed-Signal Microcontroller
Datasheet	MSP430F2003 Datasheet
Note	This datasheet PDF includes multiple part numbers: MSP430F2003, MSP430F2001. Please refer to the document for exact specifications by model.

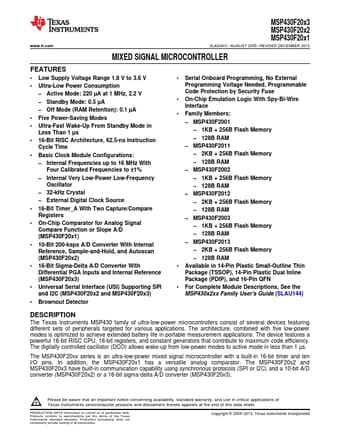

Additional preview pages of the MSP430F2003 datasheet.

Product details

Description

, See the MSP430x2xx Family User's Guide (SLAU144) DESCRIPTION The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications.The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications.The device

Features

1.
Low Supply Voltage Range 1.8 V to 3.6 V.
Ultra-Low Power Consumption.
Active Mode: 220 µA at 1 MHz, 2.2 V.
Standby Mode: 0.5 µA.
Off Mode (RAM Retention): 0.1 µA.
Five Power-Saving Modes.
Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs.
16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time.
Basic Clock Module Configurations:.
Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to.
