MSP430F2012 - Mixed-Signal Microcontroller

Download the MSP430F2012 datasheet PDF (MSP430F2001 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for mixed-signal microcontroller.

Description

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications.

Features

  • 1.
  • Low Supply Voltage Range 1.8 V to 3.6 V.
  • Ultra-Low Power Consumption.
  • Active Mode: 220 µA at 1 MHz, 2.2 V.
  • Standby Mode: 0.5 µA.
  • Off Mode (RAM Retention): 0.1 µA.
  • Five Power-Saving Modes.
  • Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs.
  • 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time.
  • Basic Clock Module Configurations:.
  • Internal Frequencies up to 16 MHz With Four Calibrated Frequencies to.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MSP430F2001-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • MSP4000 - MSP for VoIP Gateways with Integrated Secure Router (PMC-Sierra)
  • MSP4403W - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP4408G - (MSP44x8G) Multistandard Sound Processor (Micronas)
  • MSP4410G - Multistandard Sound Processor (Micronas Semiconductor)
  • MSP4418G - (MSP44x8G) Multistandard Sound Processor (Micronas)
  • MSP4420G - Multistandard Sound Processor (Micronas Semiconductor)
  • MSP4428G - (MSP44x8G) Multistandard Sound Processor (Micronas)
  • MSP4435W - P-Channel Enhancement Mode Power MOSFET (MORESEMI)
  • MSP4440G - Multistandard Sound Processor (Micronas Semiconductor)
  • MSP4448G - (MSP44x8G) Multistandard Sound Processor (Micronas)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

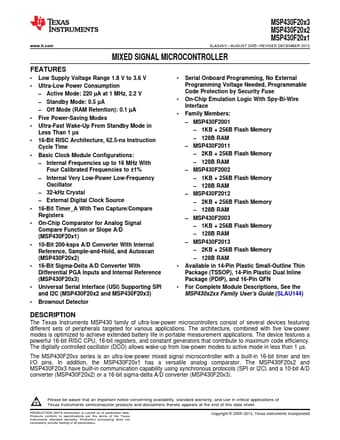

www.ti.com MSP430F20x3 MSP430F20x2 MSP430F20x1 SLAS491I – AUGUST 2005 – REVISED DECEMBER 2012 MIXED SIGNAL MICROCONTROLLER FEATURES 1 • Low Supply Voltage Range 1.8 V to 3.6 V • Ultra-Low Power Consumption – Active Mode: 220 µA at 1 MHz, 2.2 V – Standby Mode: 0.5 µA – Off Mode (RAM Retention): 0.1 µA • Five Power-Saving Modes • Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs • 16-Bit RISC Architecture, 62.
