LT1014D-EP - QUAD PRECISION OPERATIONAL AMPLIFIERS

Texas Instruments

Datasheet Details

Part number	LT1014D-EP
Manufacturer	Texas Instruments
File Size	1.54 MB
Description	QUAD PRECISION OPERATIONAL AMPLIFIERS
Datasheet	LT1014D-EP-etcTI.pdf

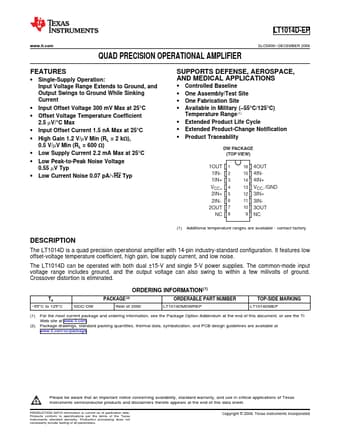

The LT1014D is a quad precision operational amplifier with 14-pin industry-standard configuration.

1.
Single-Supply Operation: Input Voltage Range Extends to Ground, and Output Swings to Ground While Sinking Current.
Input Offset Voltage 300 mV Max at 25°C.
Offset Voltage Temperature Coefficient 2.5 µV/°C Max.
Input Offset Current 1.5 nA Max at 25°C.
High Gain 1.2 V/µV Min (RL = 2 kΩ), 0.5 V/µV Min (RL = 600 Ω).
Low Supply Current 2.2 mA Max at 25°C.
Low Peak-to-Peak Noise Voltage 0.55 µV Typ.
Low Current Noise 0.07 pA/√H.
