LT1013 - Dual Precision Op Amp

Name: LT1013
SKU: LT1013-395005

Linear Technology

📥 Download Datasheet

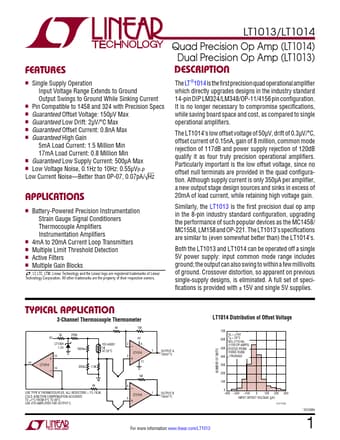

LT1013 Datasheet Preview — Preview of LT1013 PDF

Datasheet Details

Part number	LT1013
Manufacturer	Linear Technology
File Size	532.12 KB
Description	Dual Precision Op Amp
Datasheet	LT1013_LinearTechnology.pdf

LT1013 Product details

Description

TheLT ®1014isthefirstprecisionquadoperationalamplifier which directly upgrades designs in the industry standard 14-pin DIP LM324/LM348/OP-11/4156 pin configuration.

Features

n Single Supply Operation Input Voltage Range Extends to Ground Output Swings to Ground While Sinking Current n Pin Compatible to 1458 and 324 with Precision Specs n Guaranteed Offset Voltage: 150µV Max n Guaranteed Low Drift: 2µV/°C Max n Guaranteed Offset Current: 0.8nA Max n Guaranteed High Gain 5mA Load Current: 1.5 Million Min 17mA Load Current: 0.8 Million Min n Guaranteed Low Supply Current: 500µA Max n Low Voltage Noise, 0.1Hz to 10Hz: 0.55µVP-P n Low Current Noise.
