LMX2694-EP - 15-GHz Wideband PLLatinum RF Synthesizer

The LMX2694-EP by Texas Instruments is a 15-GHz Wideband PLLatinum RF Synthesizer. Below is the official datasheet preview.

📥 Download Datasheet

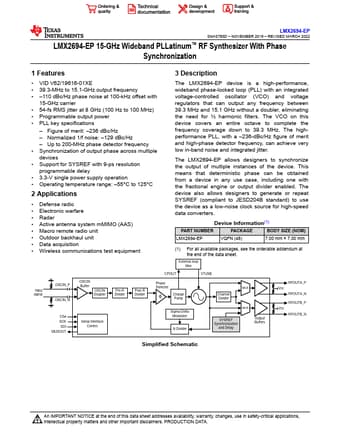

Official preview page of the LMX2694-EP 15-GHz Wideband PLLatinum RF Synthesizer datasheet (Texas Instruments).

Datasheet Details

Part number LMX2694-EP
Manufacturer Texas Instruments
File Size 2.42 MB
Description 15-GHz Wideband PLLatinum RF Synthesizer
Datasheet download datasheet LMX2694-EP-etcTI.pdf
Additional preview pages of the LMX2694-EP datasheet.

LMX2694-EP Product details

Description

VID V62/19616-01XE 39.3-MHz to 15.1-GHz output frequency 110 dBc/Hz phase noise at 100-kHz offset with 15-GHz carrier 54-fs RMS jitter at 8 GHz (100 Hz to 100 MHz) Programmable output power PLL key specifications Figure of merit: 236 dBc/Hz Normalized 1/f noise: 129 dBc/Hz Up to 200-MHz phase detector frequency Synchronization of output phase across multiple devices
