LMG2100R044 - 35A GaN Half-Bridge Power Stage

Texas Instruments

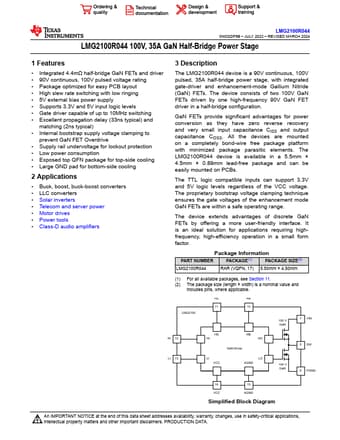

The LMG2100R044 by Texas Instruments is a 35A GaN Half-Bridge Power Stage. Below is the official datasheet preview.

📥 Download Datasheet

LMG2100R044 35A GaN Half-Bridge Power Stage by Texas Instruments - Datasheet Preview — Official preview page of the **LMG2100R044** 35A GaN Half-Bridge Power Stage datasheet (Texas Instruments).

Datasheet Details

Part number	LMG2100R044
Manufacturer	Texas Instruments
File Size	1.34 MB
Description	35A GaN Half-Bridge Power Stage
Datasheet	LMG2100R044-etcTI.pdf
Additional preview pages of the LMG2100R044 datasheet.

LMG2100R044 Product details

Description

The LMG2100R044 device is a 90V continuous, 100V pulsed, 35A half-bridge power stage, with integrated gate-driver and enhancement-mode Gallium Nitride (GaN) FETs.

Features

Integrated 4.4mΩ half-bridge GaN FETs and driver.
90V continuous, 100V pulsed voltage rating.
Package optimized for easy PCB layout.
High slew rate switching with low ringing.
5V external bias power supply.
Supports 3.3V and 5V input logic levels.
Gate driver capable of up to 10MHz switching.
Excellent propagation delay (33ns typical) and matching (2ns typical).
Internal bootstrap supply voltage clamping to prevent.
