LM74722-Q1 - Automotive Low IQ Ideal Diode Controller

Name: LM74722-Q1
SKU: LM74722-Q1-1527888

Texas Instruments

📥 Download Datasheet

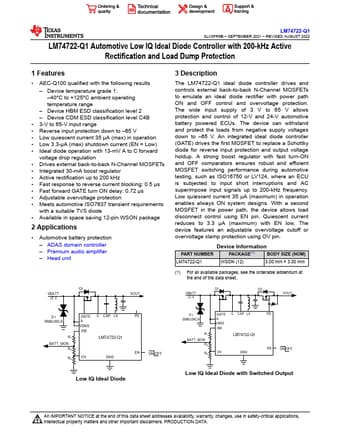

LM74722-Q1 Datasheet Preview — Preview of LM74722-Q1 PDF

Datasheet Details

Part number	LM74722-Q1
Manufacturer	Texas Instruments
File Size	3.72 MB
Description	Automotive Low IQ Ideal Diode Controller
Datasheet	LM74722-Q1-etcTI.pdf

LM74722-Q1 Product details

Description

The LM74722-Q1 ideal diode controller drives and controls external back-to-back N-Channel MOSFETs to emulate an ideal diode rectifier with power path ON and OFF control and overvoltage protection. 65 V.

Features

AEC-Q100 qualified with the following results.
Device temperature grade 1:.
40°C to +125°C ambient operating temperature range.
Device HBM ESD classification level 2.
Device CDM ESD classification level C4B.
3-V to 65-V input range.
Reverse input protection down to.
65 V.
Low quiescent current 35 µA (max) in operation.
Low 3.3-µA (max) shutdown current (EN = Low).
Ideal diode operation with 13-mV A.
