LM74703-Q1 - Ideal Diode Controller

Texas Instruments

📥 Download Datasheet

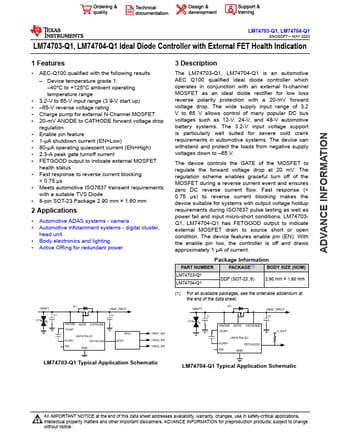

LM74703-Q1 Datasheet Preview — Preview of LM74703-Q1 PDF

Datasheet Details

Part number	LM74703-Q1
Manufacturer	Texas Instruments
File Size	1.55 MB
Description	Ideal Diode Controller
Datasheet	LM74703-Q1-etcTI.pdf

LM74703-Q1 Product details

Description

The LM74703-Q1, LM74704-Q1 is an automotive AEC Q100 qualified ideal diode controller which operates in conjunction with an external N-channel MOSFET as an ideal diode rectifier for low loss reverse polarity protection with a 20-mV forward voltage drop.

Features

AEC-Q100 qualified with the following results.
Device temperature grade 1:.
40°C to +125°C ambient operating temperature range.
3.2-V to 65-V input range (3.9-V start up).
65-V reverse voltage rating.
Charge pump for external N-Channel MOSFET.
20-mV ANODE to.
