LM629, LM628 - Precision Motion Controller

Texas Instruments

The LM629 by Texas Instruments is a Precision Motion Controller. Below is the official datasheet preview.

📥 Download Datasheet

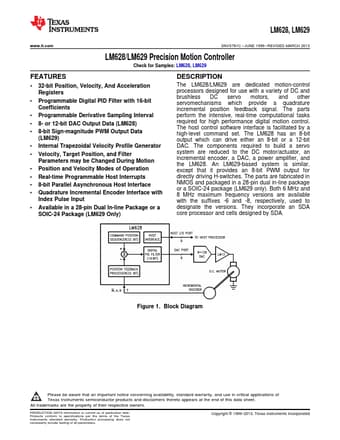

LM629 Precision Motion Controller by Texas Instruments - Datasheet Preview — Official preview page of the **LM629** Precision Motion Controller datasheet (Texas Instruments).

Datasheet Details

Part number	LM629, LM628
Manufacturer	Texas Instruments
File Size	1.40 MB
Description	Precision Motion Controller
Datasheet	LM628-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LM629, LM628. Please refer to the document for exact specifications by model.
Additional preview pages of the LM629 datasheet.

LM629 Product details

Description

The LM628/LM629 are dedicated motion-control processors designed for use with a variety of DC and brushless DC servo motors, and other servomechanisms which provide a quadrature incremental position feedback signal.

Features

1.
2 32-bit Position, Velocity, And Acceleration Registers.
Programmable Digital PID Filter with 16-bit Coefficients.
Programmable Derivative Sampling Interval.
8- or 12-bit DAC Output Data (LM628).
8-bit Sign-magnitude PWM Output Data (LM629).
Internal Trapezoidal Velocity Profile Generator.
Velocity, Target Position, and Filter Parameters may be Changed During Motion.
Position and Velocity Modes of Operation.
