LM6211 - RRO Operational Amplifier

Texas Instruments

The LM6211 by Texas Instruments is a RRO Operational Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

LM6211 RRO Operational Amplifier by Texas Instruments - Datasheet Preview — Official preview page of the LM6211 RRO Operational Amplifier datasheet (Texas Instruments).

Datasheet Details

Part number	LM6211
Manufacturer	Texas Instruments
File Size	1.13 MB
Description	RRO Operational Amplifier
Datasheet	LM6211-etcTI.pdf

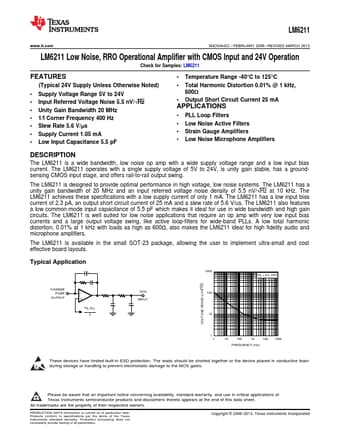

Additional preview pages of the LM6211 datasheet.

LM6211 Product details

Description

The LM6211 is a wide bandwidth, low noise op amp with a wide supply voltage range and a low input bias current.

Features

1 2(Typical 24V Supply Unless Otherwise Noted).
Supply Voltage Range 5V to 24V.
Input Referred Voltage Noise 5.5 nV/√Hz.
Unity Gain Bandwidth 20 MHz.
1/f Corner Frequency 400 Hz.
Slew Rate 5.6 V/μs.
Supply Current 1.05 mA.
Low Input Capacitance 5.5 pF.
Temperature Range -40°C to 125°C.
Total Harmonic Distortion 0.01% @ 1 kHz, 600Ω.
Output Short Circuit Current 25 mA.
