LM5067 - Negative Hot Swap / Inrush Current Controller

Texas Instruments

The LM5067 by Texas Instruments is a Negative Hot Swap / Inrush Current Controller. Below is the official datasheet preview.

📥 Download Datasheet

LM5067 Negative Hot Swap / Inrush Current Controller by Texas Instruments - Datasheet Preview — Official preview page of the **LM5067** Negative Hot Swap / Inrush Current Controller datasheet (Texas Instruments).

Datasheet Details

Part number	LM5067
Manufacturer	Texas Instruments
File Size	2.53 MB
Description	Negative Hot Swap / Inrush Current Controller
Datasheet	LM5067-etcTI.pdf

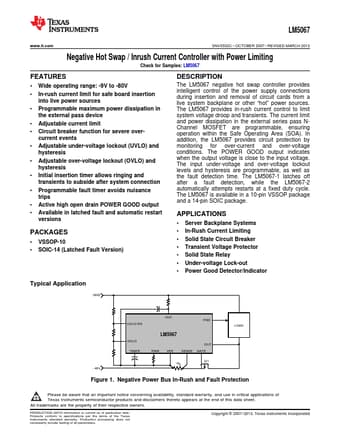

Additional preview pages of the LM5067 datasheet.

LM5067 Product details

Description

The LM5067 negative hot swap controller provides intelligent control of the power supply connections during insertion and removal of circuit cards from a live system backplane or other “hot” power sources.

Features

1.
2 Wide operating range: -9V to -80V.
In-rush current limit for safe board insertion into live power sources.
Programmable maximum power dissipation in the external pass device.
Adjustable current limit.
Circuit breaker function for severe over- current events.
Adjustable under-voltage lockout (UVLO) and hysteresis.
Adjustable over-voltage lockout (OVLO) and hysteresis.
Initial insertion timer allows ringing and transients.
