LM5060Q1 - High-Side Protection Controller

National Semiconductor

The LM5060Q1 by National Semiconductor is a High-Side Protection Controller. Below is the official datasheet preview.

📥 Download Datasheet

LM5060Q1 High-Side Protection Controller by National Semiconductor - Datasheet Preview — Official preview page of the **LM5060Q1** High-Side Protection Controller datasheet (National Semiconductor).

Datasheet Details

Part number	LM5060Q1
Manufacturer	National Semiconductor
File Size	545.29 KB
Description	High-Side Protection Controller
Datasheet	LM5060Q1_NationalSemiconductor.pdf

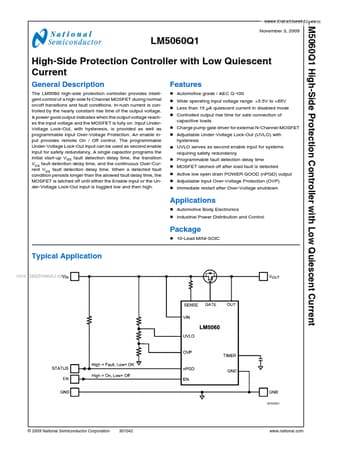

Additional preview pages of the LM5060Q1 datasheet.

LM5060Q1 Product details

Description

The LM5060 high-side protection controller provides intelligent control of a high-side N-Channel MOSFET during normal on/off transitions and fault conditions.

Features

Automotive grade / AEC Q-100 Wide operating input voltage range: +5.5V to +65V Less than 15 µA quiescent current in disabled mode Controlled output rise time for safe connection of capacitive loads Charge pump gate driver for external N-Channel MOSFET Adjustable Under-Voltage Lock-Out (UVLO) with hysteresis UVLO serves as second enable input for systems requiring safety redundancy Programmable fault detection delay time MOSF.
