LM393-N - Low-Power Low-Offset Voltage Dual Comparators

Texas Instruments

📥 Download Datasheet

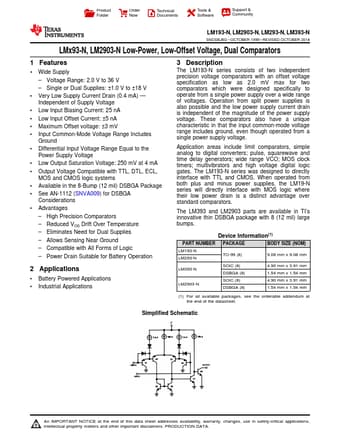

LM393-N Datasheet Preview — Preview of LM393-N PDF

Datasheet Details

Part number	LM393-N
Manufacturer	Texas Instruments
File Size	1.70 MB
Description	Low-Power Low-Offset Voltage Dual Comparators
Datasheet	LM393-N-etcTI.pdf

LM393-N Product details

Description

The LM193-N series consists of two independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for two comparators which were designed specifically to operate from a single power supply over a wide range of voltages.

Features

1 Wide Supply.
Voltage Range: 2.0 V to 36 V.
Single or Dual Supplies: ±1.0 V to ±18 V.
Very Low Supply Current Drain (0.4 mA).
Independent of Supply Voltage.
Low Input Biasing Current: 25 nA.
Low Input Offset Current: ±5 nA.
Maximum Offset voltage: ±3 mV.
Input Common-Mode Voltage Range Includes Ground.
Differential Input Voltage Range Equal to the Power Supply Voltage.
Low Output Saturation Voltag.
